About SRC MODEL PNEUMATIC CYLINDER

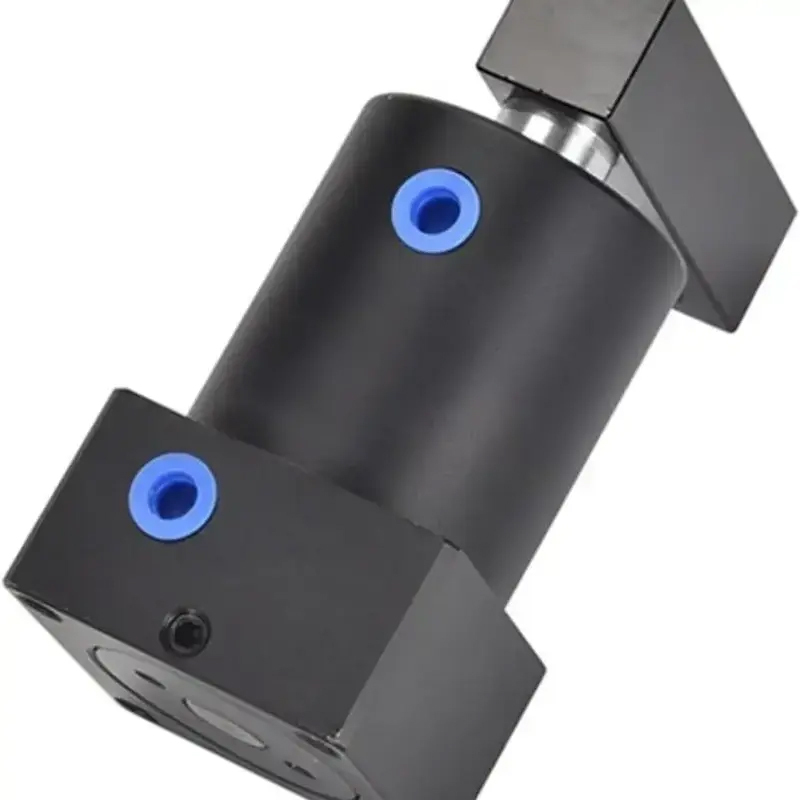

THINK TECH SRC Model Pneumatic Cylinder Specification

General Description

The SRC Series Pneumatic Cylinder is a compact, double-acting cylinder designed for reliable performance in industrial automation. Built with precision aluminum alloy construction and high-quality seals, the SRC cylinder ensures long service life, smooth operation, and energy efficiency. It is suitable for clamping, pressing, lifting, and general automation applications.

Technical Specifications

• Model: SRC Series Pneumatic Cylinder

• Type: Double Acting / Single Acting (Optional)

• Bore Sizes: 32mm to 100mm (standard)

• Stroke Range: Up to 1000 mm (custom stroke available)

• Working Pressure: 0.1 1.0 MPa (1 10 bar)

• Maximum Pressure: 1.5 MPa

• Operating Medium: Filtered, lubricated or non-lubricated compressed air

• Operating Temperature: -5C to +70C (special seals available for -20C to +150C)

• Body Material: High strength Aluminum Alloy (Anodized finish)

• End Covers: Aluminum Die Cast / Steel (depending on size)

• Piston Rod: Stainless Steel (Hard Chrome plated for corrosion resistance)

• Cushioning: Adjustable air cushioning at both ends (standard)

• Mounting Options:

  • Foot Mounting

  • Flange Mounting

  • Clevis Mounting

  • Trunnion Mounting

• Port Size: Standard G / NPT thread (custom available)

• Seal Material: NBR / Viton (for high temperature)

Features

• Compact and lightweight design

• High-strength aluminum alloy tube for durability

• Smooth motion with precision-ground stainless-steel piston rod

• Double-acting with excellent thrust output

• Adjustable air cushioning for shock absorption

• Wide range of mounting accessories available

• Maintenance-free operation with long service life

Applications

• Automation & Assembly Lines

• Packaging Machinery

• Textile Industry

• Material Handling Equipment

• Food & Beverage Processing (SS piston rod for hygiene)

• Printing & Paper Industry

• General Industrial Automation
