CDJ MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC

About CDJ MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC

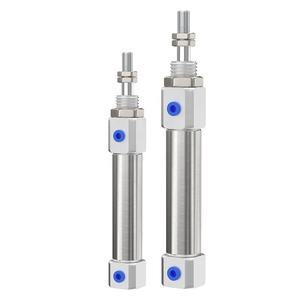

THINK TECH CDJ Model Pneumatic Cylinder

• Model: CDJ (Mini Stainless Steel Cylinder)

• Type: Double Acting / Single Acting (as per requirement)

• Magnetic / Non-Magnetic: Available with magnetic piston for proximity sensors, or without magnet

• Bore Size: 6, 10, 12, 16, 20, 25, 32 mm

• Stroke Length: 10 mm to 300 mm (custom stroke available)

• Acting Type: Double Acting (air both ends) / Single Acting (spring return/extend)

• Operating Pressure: 0.1 0.9 MPa (1 9 bar)

• Proof Pressure: 1.35 MPa

• Operating Temperature: -20C to +70C

• Operating Medium: Filtered compressed air (lubricated or non-lubricated)

• Cushioning: Fixed cushion / rubber bumper

• Body Material: Stainless steel tube with anodized aluminum end caps

• Piston Rod: Stainless steel, high strength & anti-rust

• Port Size: M5, 1/8 (depends on bore size)

• Mounting Style:

  • Foot mounting

  • Flange mounting

  • Clevis mounting

  • Trunnion mounting

• Features:

  • Lightweight, compact stainless steel design

  • Smooth movement & high durability

  • Magnetic option for sensor mounting

  • Suitable for small equipment & automation

  • Long service life with low maintenance
