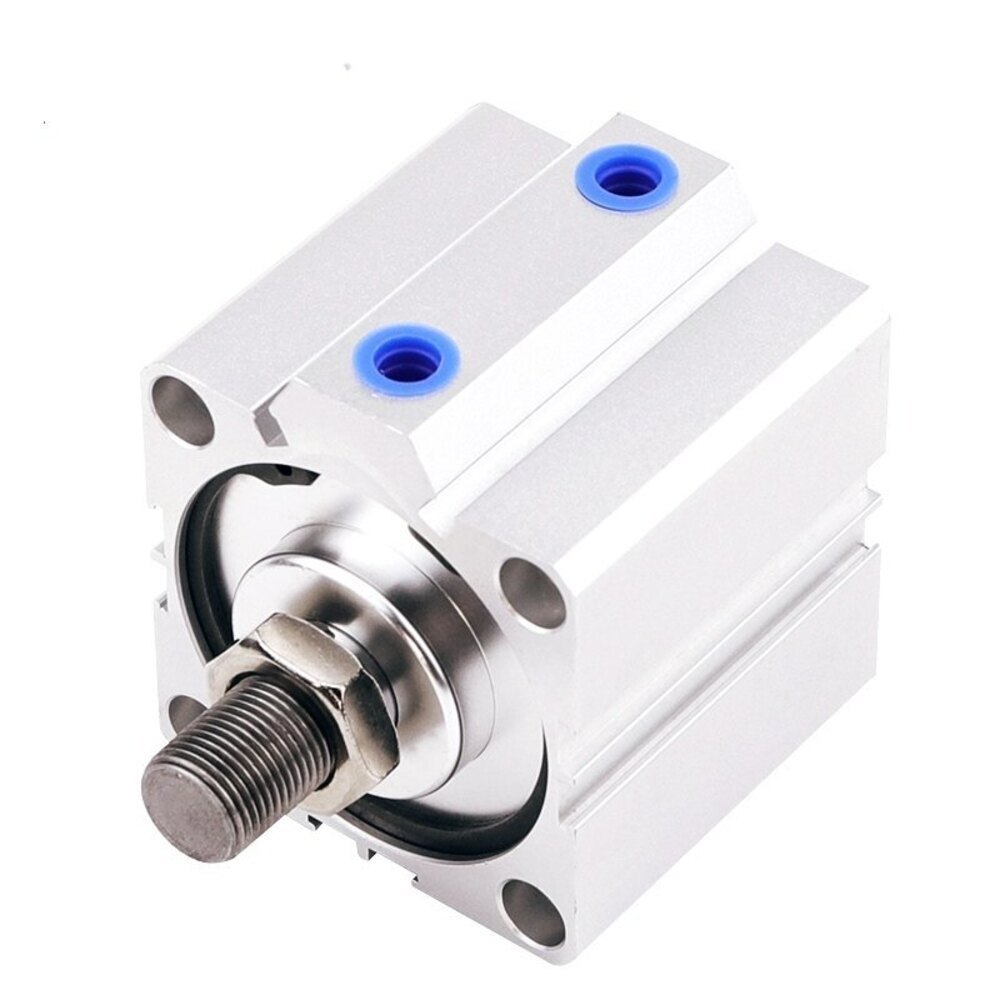

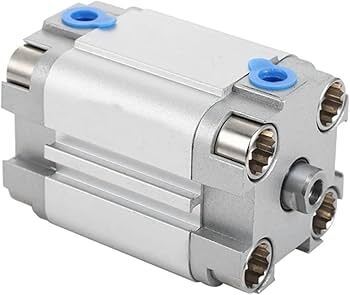

About SDA MODEL PNEUMATIC CYLINDER MALE SHAFT MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

THINK TECH SDA Model Pneumatic Cylinder Specification

General Description

The SDA Series Pneumatic Cylinder is a compact, double-acting air cylinder designed for space-saving automation applications. Available in male shaft, magnetic & non-magnetic, double-ended shaft, and customizable stroke options, the SDA model ensures precise movement, high strength, and long service life. Its lightweight aluminum body and precision-guided piston rod make it ideal for high-speed and repetitive operations in modern industries.

Technical Specifications

• Model: SDA Series Compact Pneumatic Cylinder

• Type:

  • Double Acting (Standard)

  • Double Ended Shaft (Optional)

  • Magnetic (for position sensing) / Non-Magnetic (cost-effective option)

• Bore Sizes: 12mm to 100mm

• Stroke Range: Up to 100mm (standard), custom strokes available on request

• Working Pressure: 0.1 1.0 MPa (1 10 bar)

• Maximum Pressure: 1.5 MPa

• Operating Medium: Filtered compressed air (lubricated or non-lubricated)

• Operating Temperature: -5C to +70C (optional seals available for -20C to +150C)

• Body Material: High-strength Aluminum Alloy, hard anodized for wear resistance

• End Covers: Aluminum Die Cast

• Piston Rod (Male Shaft): Stainless Steel, hard chrome plated

• Piston Type: Single piston with high-quality sealing

• Seals: NBR / Viton (for high temperature resistance)

• Cushioning: Adjustable (both ends) for shock absorption

• Port Size: M5, 1/8", 1/4" depending on bore size

• Mounting Options:

  • Direct Mount (compact design fits tight spaces)

  • Foot Mounting

  • Flange Mounting

  • Clevis Mounting

  • Customized Mounting on Request

Features

• Ultra-compact body design saves installation space

• Double Acting / Double Ended Shaft options available

• Magnetic type supports reed/proximity sensors for position feedback

• Non-magnetic type for cost-effective use where sensors not required

• Male piston rod for direct fitting with machine components

• High-strength stainless steel rod ensures durability and smooth operation

• Adjustable cushioning for reduced noise and shock at stroke ends

• Custom stroke lengths and special designs available

Applications

• Robotics & Automation

• Pick and Place Systems

• Packaging Machinery

• Electronics Assembly

• Textile Industry

• Printing & Paper Machines

• Small Fixtures & Special Purpose Machines (SPM)

• Material Handling in confined spaces
