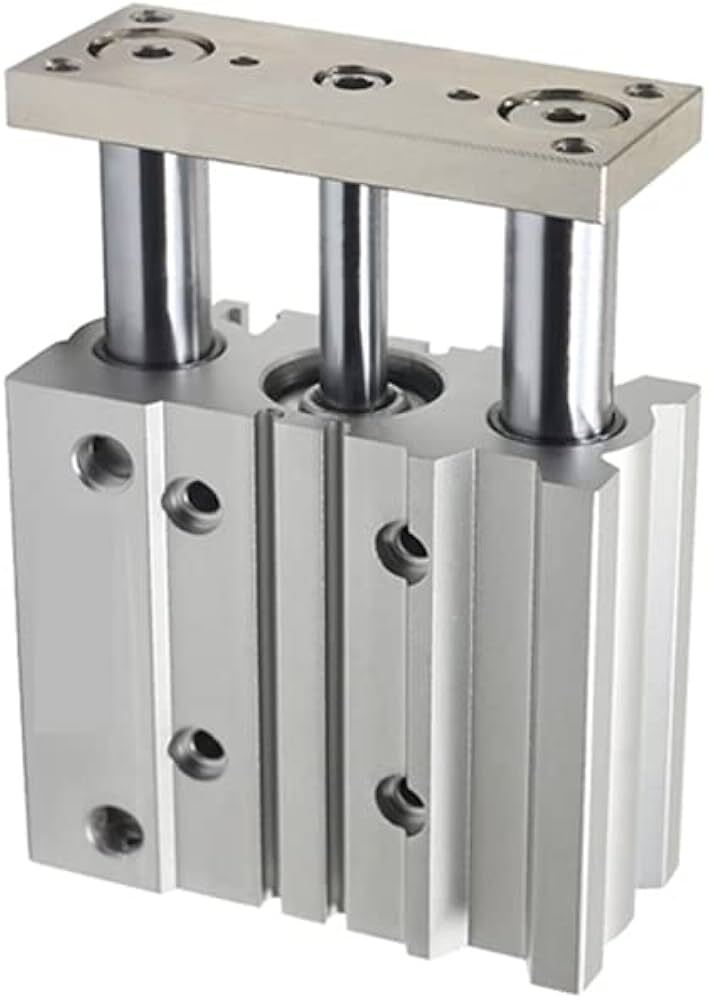

THINK TECH MGPM Model Guide Pneumatic Cylinder Magnetic, Double Acting

Description

The MGPM Pneumatic Cylinder Series is a compact guide cylinder designed for precise linear motion with excellent load resistance. Equipped with magnetic piston for sensor detection and double acting operation, it provides high stability, anti-rotation accuracy, and durability. Suitable for applications requiring guided motion, clamping, lifting, pushing, and positioning in industrial automation.

Technical Specifications

• Model: MGPM Series

• Type: Guided Pneumatic Cylinder

• Operation: Double Acting

• Piston Action: Magnetic for sensor mounting

• Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm

• Stroke Range: 10 mm 200 mm (customizable)

• Working Medium: Filtered Compressed Air (40 m or better)

• Operating Pressure: 0.1 1.0 MPa (1 10 bar)

• Proof Pressure: 1.5 MPa

• Temperature Range: -10C 60C (non-freezing)

• Cushioning: Adjustable / Built-in bumper

• Lubrication: Not required (pre-lubricated)

• Guide Type: Dual rod with precision linear guide bearing

• Body Material: High strength Aluminum Alloy

• Piston Rod: Hard chrome plated carbon steel / Stainless Steel

• Seal Material: NBR / Viton (optional)

• Mounting Style: Through hole, side tapped, or base mounting

• Sensor Mounting: Magnetic reed / proximity switches available

Key Features

• Compact guided cylinder with high rigidity and load capacity

• Magnetic piston for sensor attachment and position feedback

• Double acting operation ensures smooth and reliable performance

• Excellent non-rotating accuracy for precise positioning

• Strong side load resistance due to precision guide rods

• Long service life with low maintenance

• Available in customized stroke lengths

Applications

• Lifting and pushing operations

• Precise clamping and positioning

• Pick & place automation

• Material handling systems

• Packaging and assembly machinery

• Pressing, guiding, and alignment processes
