About MA -MS MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

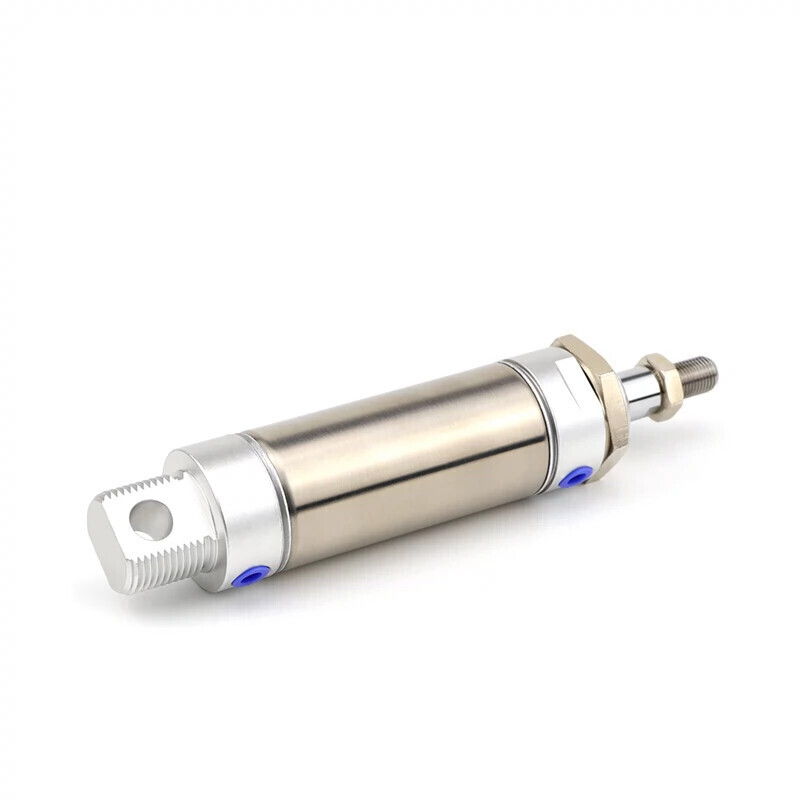

THINK TECH MA / MS Model Pneumatic Cylinder

(Magnetic & Non-Magnetic, Double Acting, Double Ended, Adjustable & Customized)

Description

The MA / MS Series Pneumatic Cylinders are mini and standard round body air cylinders designed for versatile automation use. Available in both magnetic and non-magnetic versions, these cylinders support double acting operation and double-ended piston rod designs. With adjustable stroke and full customization options, MA/MS cylinders ensure high durability and reliability across industrial applications.

Technical Specifications

• Model: MA / MS Series

• Type: Mini / Standard Round Pneumatic Cylinder

• Operation: Double Acting

• Piston Options: Magnetic / Non-Magnetic

• Rod Type: Single-ended / Double-ended

• Bore Sizes: 16, 20, 25, 32, 40, 50, 63 mm

• Stroke Range: 25 mm 1000 mm (customizable)

• Medium: Filtered Compressed Air (40 m or better)

• Operating Pressure: 0.1 1.0 MPa (1 10 bar)

• Proof Pressure: 1.35 MPa

• Temperature Range: -10C +70C (non-freezing)

• Speed Range: 30 1000 mm/s

• Cushioning: Adjustable (air cushion / rubber bumper)

• Body Material: Hard anodized Aluminum Alloy (round barrel)

• Piston Rod: Stainless Steel (high precision & corrosion-resistant)

• End Covers: Aluminum Alloy / Cast options

• Seals: NBR standard, Viton optional for high temp

• Mounting Styles: Foot, flange, trunnion, clevis, front/rear cover thread, or customized brackets

• Customization: Bore size, stroke length, shaft type, and mounting

Key Features

• Round barrel design compact & strong

• Available in Magnetic & Non-Magnetic models

• Double Acting for efficient actuation

• Double-ended piston rod option for special operations

• Adjustable stroke for flexible applications

• Customizable for stroke, bore, and mounting

• Durable anodized aluminum body

• Corrosion-resistant stainless steel piston rod

• High reliability in continuous operation

• Compatible with magnetic sensors for position detection (magnetic version)

Applications

• Automation & robotics

• Packaging & labeling equipment

• Textile machinery

• Printing & processing machines

• Medical / laboratory equipment

• Food & beverage automation

• General industrial automation
