About ADVU MODEL PNEUMATIC CYLINDER FEMALE SHAFT MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

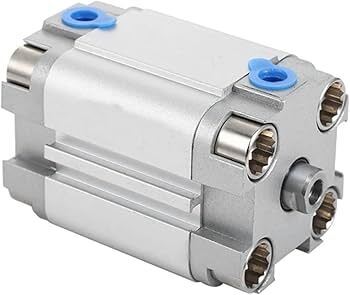

THINK TECH ADVU Model Pneumatic Cylinder (Female Shaft Magnetic / Non-Magnetic, Double Acting, Double Ended, Adjustable & Customizable)

Technical Specifications

• Product Type: Compact Pneumatic Cylinder

• Model: ADVU Series

• Acting Type: Double Acting (air-powered extension and retraction)

• Piston Rod Type: Female Threaded Shaft

• Magnet Type: Available in Magnetic (for sensor detection) and Non-Magnetic versions

• Piston Rod Ends: Double-ended rod configuration available

• Stroke Length: Standard from 5 mm to 100 mm (custom strokes on request)

• Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63 mm (custom bore sizes available)

• Adjustability: Built-in adjustable cushioning for smooth operation

• Working Pressure: 0.11.0 MPa (110 bar)

• Operating Temperature: -20C to +80C

• Body Material: Anodized aluminium cylinder barrel, stainless steel piston rod

• Seals: NBR standard (optional Viton for high temperature)

• Mounting Options: Through-hole, foot mount, flange mount, or custom designs

• Sensor Mounting: Magnetic version supports proximity sensors

• Customization: Available for stroke length, bore size, mounting style, and port orientation
