About MAL MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

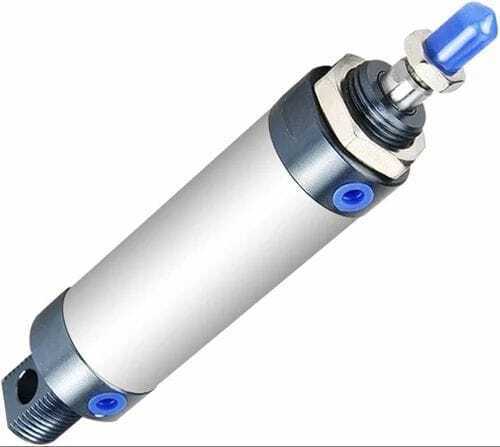

THINK TECH MAL Model Pneumatic Cylinder

(Magnetic / Non-Magnetic, Double Acting, Double Ended, Adjustable & Customizable)

Description

The MAL Series Pneumatic Cylinder is a miniature lightweight cylinder designed for compact automation systems. Available in both magnetic and non-magnetic versions, this cylinder supports double acting and double-ended piston rod configurations. With adjustable stroke and customizable options, the MAL cylinder offers high performance in a space-saving aluminum alloy body.

Technical Specifications

• Model: MAL Series

• Type: Mini Pneumatic Cylinder

• Operation: Double Acting

• Piston Options: Magnetic / Non-Magnetic

• Rod Type: Single-ended / Double-ended

• Bore Sizes: 16, 20, 25, 32, 40 mm

• Stroke Range: 25 mm 500 mm (customizable)

• Medium: Filtered Compressed Air (40 m or better)

• Operating Pressure: 0.1 0.9 MPa (1 9 bar)

• Proof Pressure: 1.35 MPa

• Temperature Range: -10C +70C (non-freezing)

• Speed Range: 30 800 mm/s

• Cushioning: Adjustable (rubber bumpers or air cushioning)

• Body Material: Hard anodized Aluminum Alloy

• Piston Rod: Stainless Steel (polished, corrosion-resistant)

• End Caps: Aluminum alloy with anodized finish

• Seals: NBR / Viton optional for high temperature

• Mounting Styles: Foot, flange, trunnion, clevis, or customized brackets

• Customization: Stroke, rod type, magnetic sensor slots, and mounting options

Key Features

• Compact and lightweight design for easy installation

• Available in magnetic and non-magnetic versions

• Double acting operation for efficient motion control

• Double-ended piston rod option for dual-purpose applications

• Adjustable stroke cushioning for smooth operation

• Customizable bore, stroke, and mounting styles

• Durable aluminum alloy body with long service life

• Corrosion-resistant stainless steel piston rod

• Supports proximity and reed sensors in magnetic models

Applications

• Packaging & labeling machines

• Light assembly automation

• Pick & place robotic systems

• Textile machinery

• Printing & processing machines

• Medical & laboratory equipment

• Custom automation solutions
