About SNC MODEL ISO PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

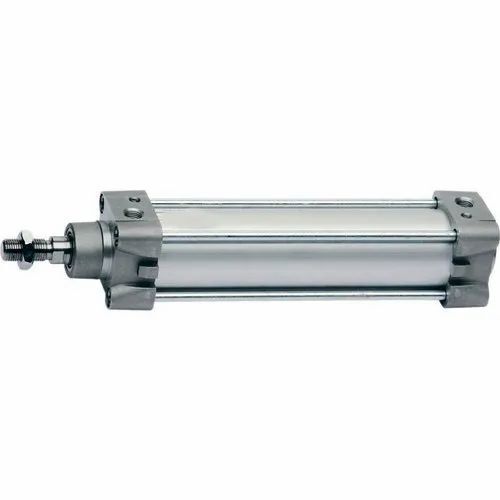

THINK TECH SNC Model ISO Pneumatic Cylinder Specification

General Description

The SNC Series ISO Pneumatic Cylinder is a heavy-duty, double-acting cylinder designed as per ISO 15552 / VDMA 24562 standards. Manufactured from high-quality aluminum alloy with stainless-steel piston rods, these cylinders provide high performance, durability, and easy interchangeability with other ISO standard cylinders. Suitable for a wide range of industrial automation and machinery applications.

Technical Specifications

• Model: SNC Series ISO Pneumatic Cylinder

• Standard: ISO 15552 / VDMA 24562

• Type: Double Acting

• Bore Sizes: 32mm to 200mm (standard range)

• Stroke Range: Up to 2000 mm (custom strokes available)

• Working Pressure: 0.1 1.0 MPa (1 10 bar)

• Maximum Pressure: 1.5 MPa

• Operating Medium: Filtered, lubricated or non-lubricated compressed air

• Operating Temperature: -5C to +70C (special seals available for -20C to +150C)

• Cylinder Tube: High strength Aluminum Alloy, hard anodized

• End Covers: Aluminum Die Cast (with integrated cushion adjustment)

• Piston Rod: Stainless Steel, Hard Chrome Plated

• Cushioning: Adjustable pneumatic cushioning at both ends

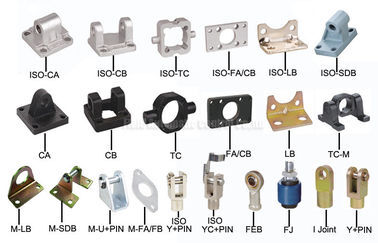

• Mounting Styles:

  • Foot mounting

  • Flange mounting (Front / Rear)

  • Clevis mounting

  • Trunnion mounting

  • Rod eye & rod clevis available

• Port Size: G / NPT thread (as per bore size)

• Seal Material: NBR / Viton (for high temperature option)

Features

• ISO Standard Design Easy interchangeability with global ISO cylinders

• Strong & Lightweight Aluminum alloy body for high performance

• Precision Rod & Seal System Smooth motion and long service life

• Double Acting Powerful extend and retract strokes

• Adjustable Cushioning Reduces impact at stroke ends

• Wide Range of Mounting Flexible installation in any machinery

• Maintenance-Free with high reliability

Applications

• Industrial Automation Systems

• Packaging & Printing Machinery

• Textile Industry

• Automotive Assembly Lines

• Food & Beverage Industry (with SS316 rod option)

• Pneumatic Presses & Material Handling

• Robotics & Special Purpose Machines (SPM)
