About ADVU MODEL PNEUMATIC CYLINDER MALE SHAFT MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

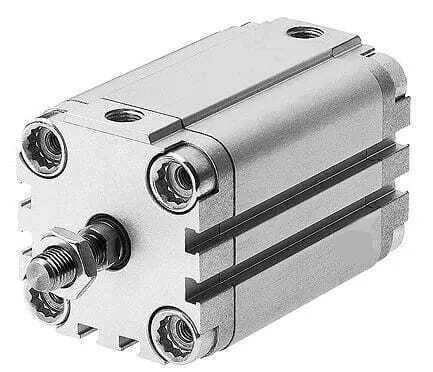

THINK TECH ADVU Model Pneumatic Cylinder (Male Shaft Magnetic / Non-Magnetic, Double Acting, Double Ended, Adjustable & Customizable):

Technical Specifications

• Product Type: Compact Pneumatic Cylinder

• Model: ADVU Series

• Acting Type: Double Acting (both extend and retract powered by air)

• Piston Rod Type: Male Threaded Shaft

• Magnet Type: Available in Magnetic (for sensor mounting) and Non-Magnetic versions

• Piston Rod Ends: Double-ended option available (rods on both sides)

• Stroke Length: Standard from 5 mm to 100 mm (custom strokes available)

• Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63 mm (custom bore sizes on request)

• Adjustability: Adjustable cushioning for smooth end position

• Working Pressure: 0.11.0 MPa (110 bar)

• Operating Temperature: -20C to +80C

• Body Material: Hard anodized aluminium barrel with stainless steel piston rod

• Seals: NBR or Viton (optional for high temperature)

• Mounting Options: Through-hole, foot mount, flange, or custom mounts

• Sensor Mounting: Magnetic type allows use of proximity sensors for position sensing

• Customization: Available on bore, stroke, rod end, mounting, and port orientation
