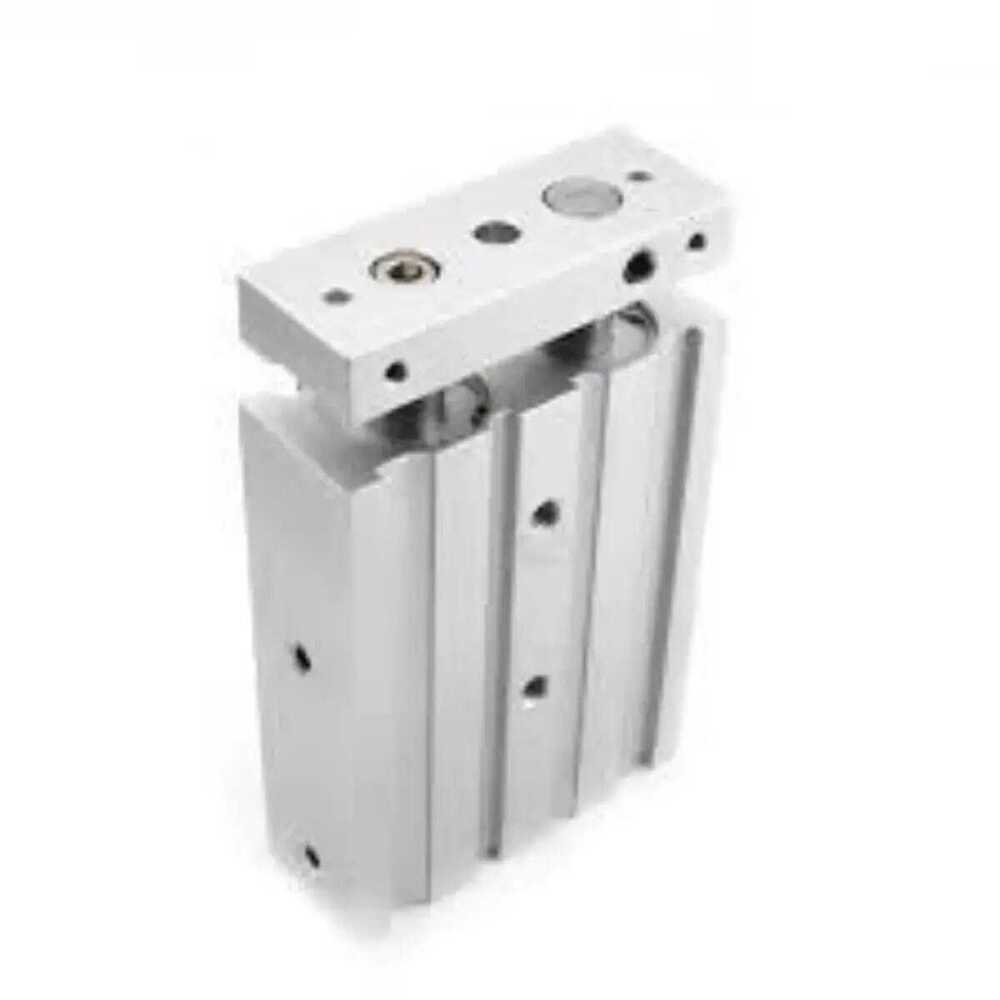

CXS MODEL PNEUMATIC CYLINDER MAGNETIC AND DOUBLE ACTING

About CXS MODEL PNEUMATIC CYLINDER MAGNETIC AND DOUBLE ACTING

THINK TECH CXS Model Pneumatic Cylinder

• Model: CXS Series

• Type: Pneumatic Cylinder

• Acting Type: Double Acting

• Piston Type: Twin Piston for high precision and load capacity

• Magnetic: With Magnet (for sensor mounting and position detection)

• Available Bore Sizes: 6, 10, 16, 20, 25, 32 mm (varies by model)

• Stroke Range: 10 mm 200 mm (customized strokes available)

• Working Medium: Filtered Compressed Air (lubricated or non-lubricated)

• Operating Pressure Range: 0.1 1.0 MPa (1 10 bar)

• Proof Pressure: 1.5 MPa (15 bar)

• Operating Temperature: -10C +60C (without freezing)

• Cushioning: Rubber bumper at both ends

• Guide Type: Precision linear guide for anti-rotation and high accuracy

• Port Size: M5, 1/8", 1/4" (depending on bore size)

• Body Material: Aluminum Alloy with anodized finish

• Piston Rod: Stainless Steel, high wear resistance

• Features:

  • Compact body design with dual piston rods for high non-rotating accuracy

  • High rigidity and load resistance due to twin rod construction

  • Magnetic type allows easy mounting of auto switches

  • Smooth movement and long service life

• Applications:

  • Pick and place automation

  • Clamping, pushing, and lifting mechanisms

  • Robotics and handling systems

  • Packaging and assembly machinery
