THINK TECH SC Model Pneumatic Cylinder Specification

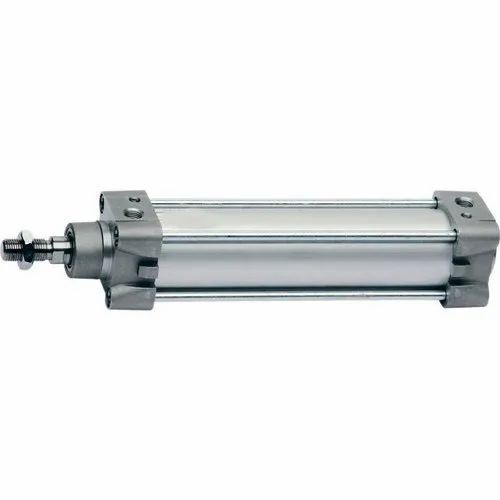

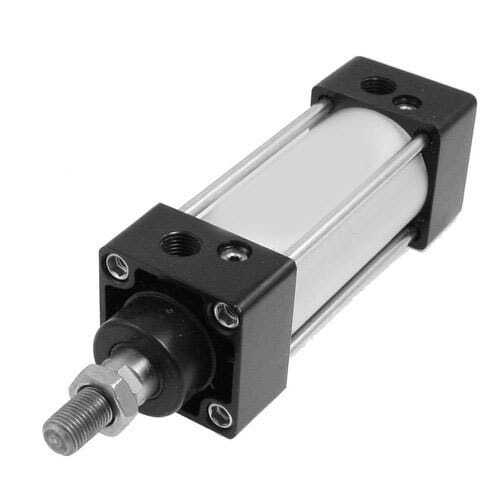

General Description

The SC Series Pneumatic Cylinder is a standard ISO profile air cylinder designed for heavy-duty industrial automation. Available in magnetic (sensor mountable) and non-magnetic versions, the SC cylinder provides reliable, smooth operation with options for double acting, double ended piston rod, adjustable cushioning, and custom strokes. Its robust aluminum or steel barrel with stainless steel piston rod ensures long service life in demanding applications.

Technical Specifications

• Model: SC Series Pneumatic Cylinder

• Type:

  • Double Acting (Standard)

  • Double Ended Shaft (Optional)

  • Magnetic (supports position sensing) / Non-Magnetic (standard)

• Bore Sizes: 32mm to 200mm

• Stroke Range: Standard up to 2000mm (custom strokes available on request)

• Working Pressure: 0.1 1.0 MPa (1 10 bar)

• Maximum Pressure: 1.5 MPa

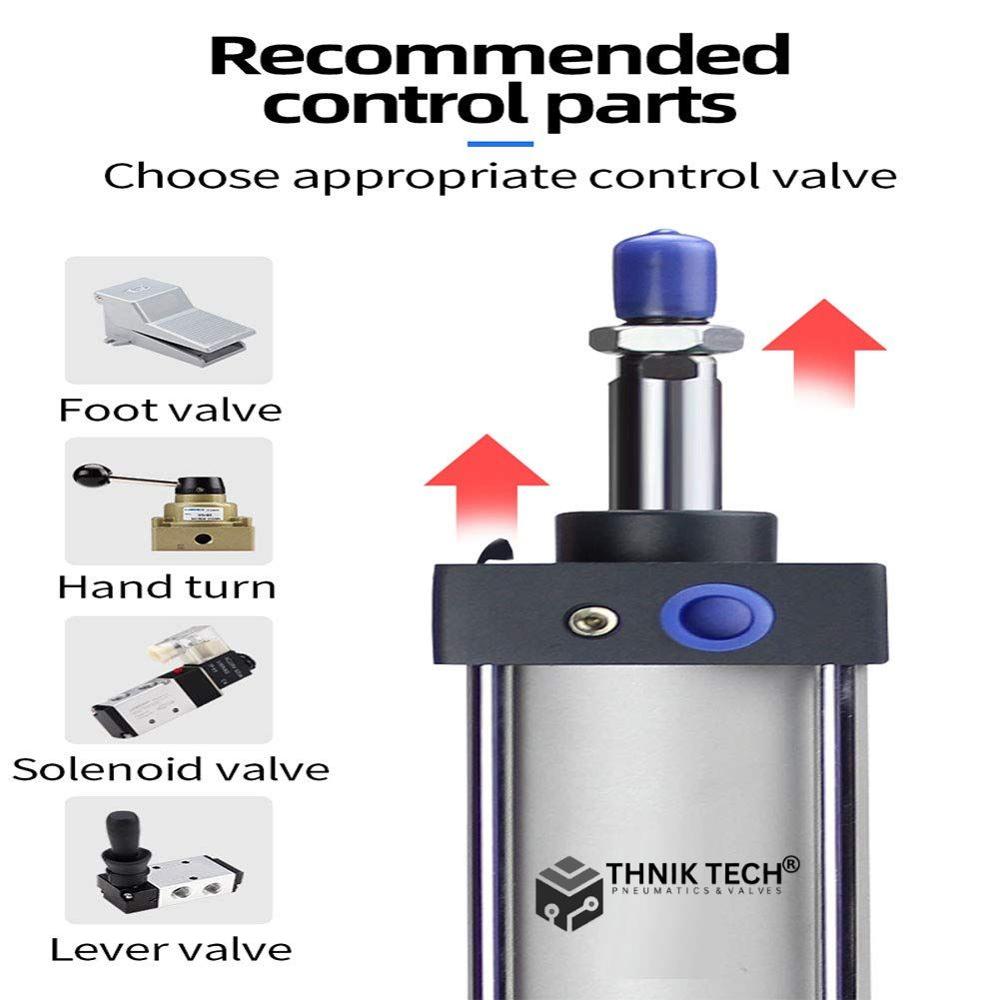

• Operating Medium: Filtered Compressed Air (Lubricated or Non-Lubricated)

• Operating Temperature: -5C to +70C (special seals available for -20C to +150C)

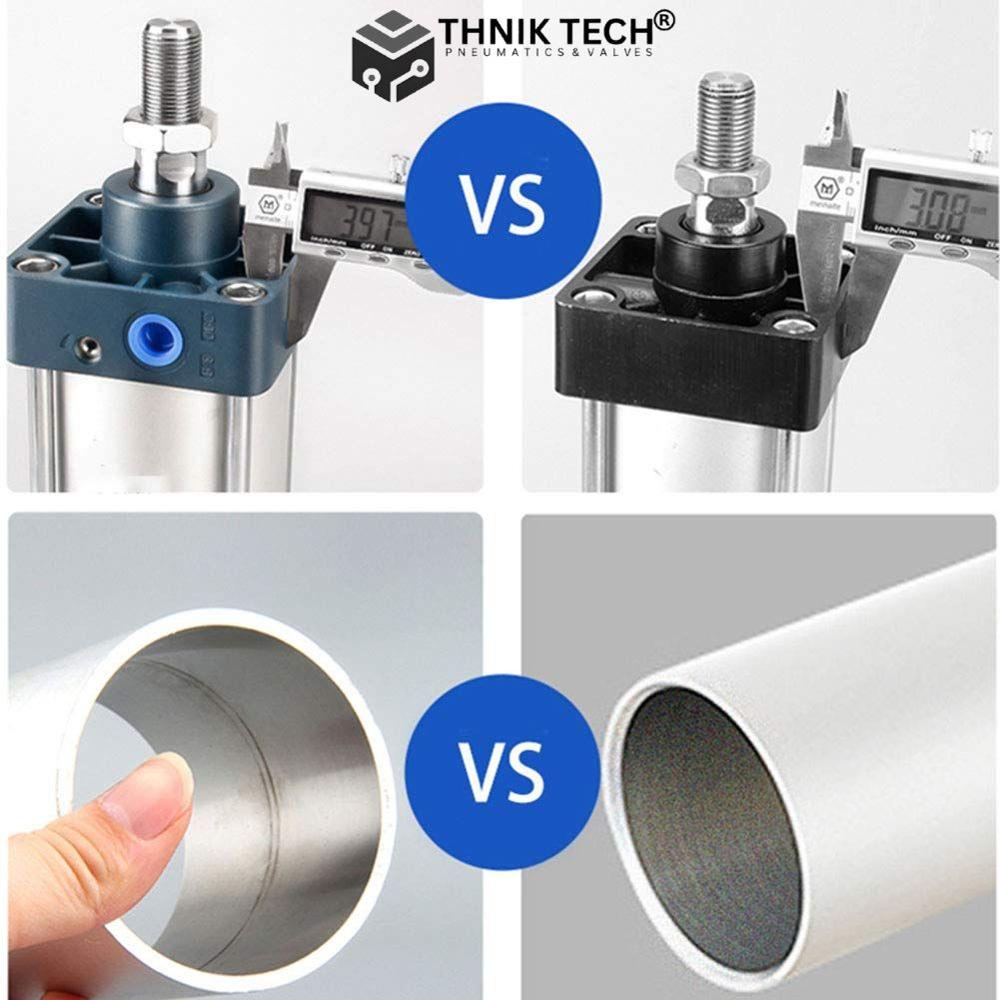

• Cylinder Barrel: Aluminum Alloy (Hard Anodized) or Steel

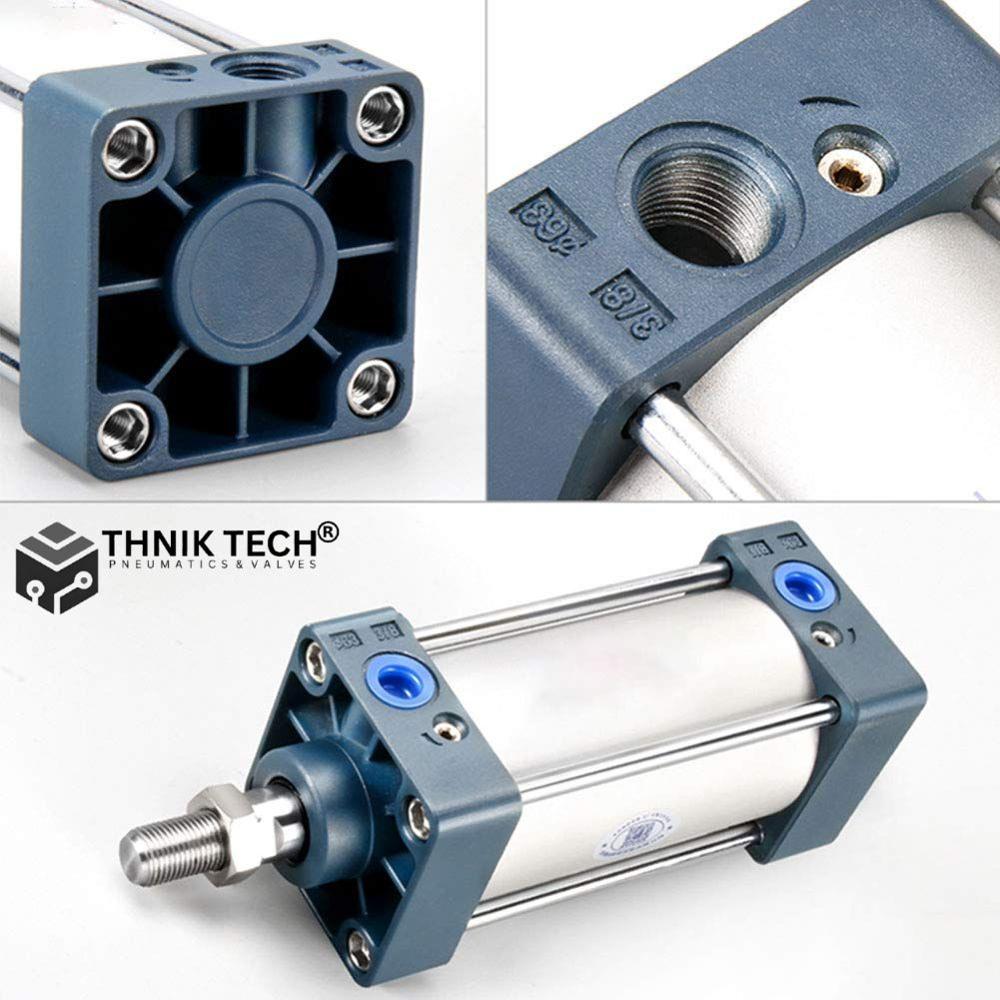

• End Covers: Cast Aluminum / Cast Iron (depending on size)

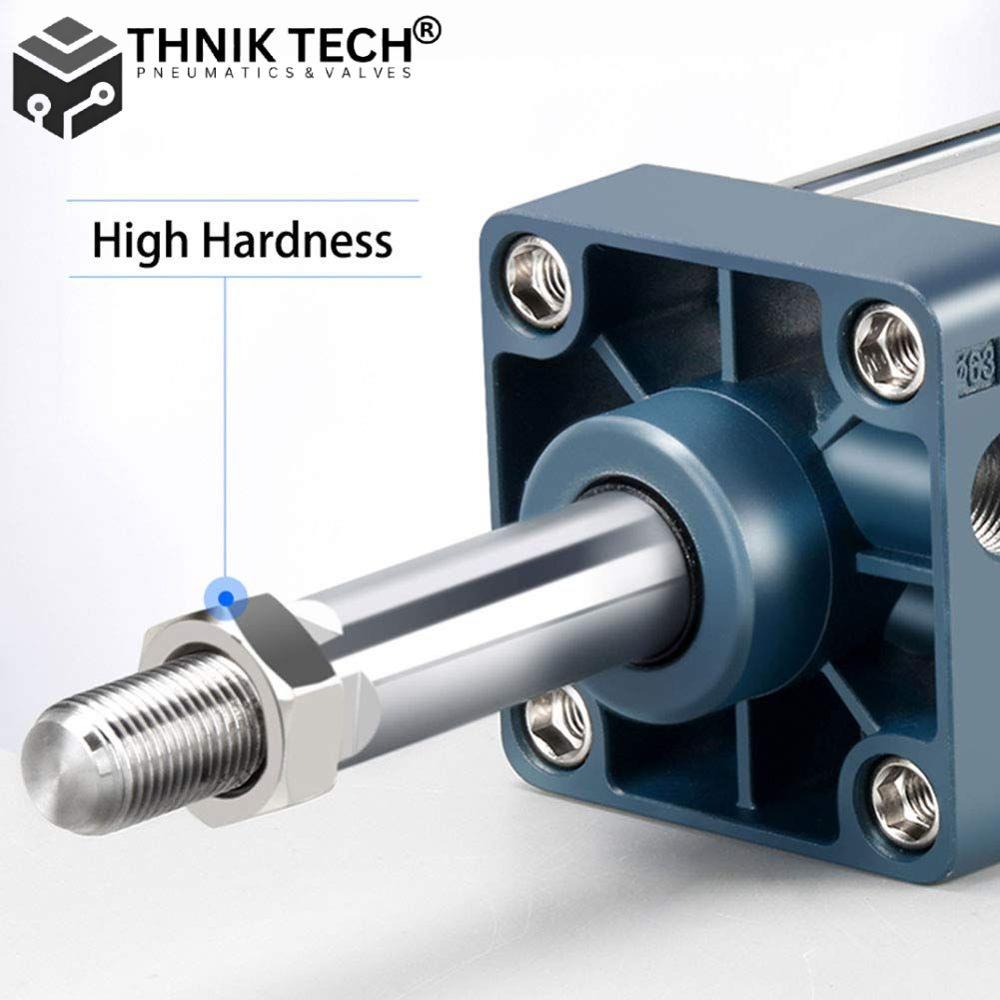

• Piston Rod: Stainless Steel, hard chrome plated (single or double ended)

• Seals: NBR (standard) / Viton (optional for high temperature)

• Cushioning: Adjustable (both ends) with air cushion screw

• Port Size: 1/8", 1/4", 3/8", 1/2", 3/4", 1" (depending on bore size)

• Mounting Styles:

  • Foot Mount (LB)

  • Flange Mount (FA / FB)

  • Clevis Mount (CA / CB)

  • Trunnion Mount (TC / TD)

  • Customized mounting options available

Features

• ISO standard design for interchangeability with global brands

• Magnetic type allows sensor installation for stroke monitoring

• Non-magnetic type available for basic operations

• Double Acting / Double Ended Rod options for versatile applications

• Adjustable air cushioning for smooth stroke end movement

• Robust construction ensures high strength and long life

• Suitable for long-stroke and heavy-duty automation

• Custom strokes, seals, and special mounting options available

Applications

• Industrial Automation & Robotics

• Automotive Machinery

• Packaging & Food Processing Equipment

• Printing & Textile Industry

• Steel & Foundry Equipment

• Machine Tools & Presses

• Special Purpose Machinery (SPM)

• Material Handling Systems
