About MHC2-MHY2-MHZ2-MHZL2 PNEUMATIC CYLINDER MAGNETIC DOUBLE ACTING

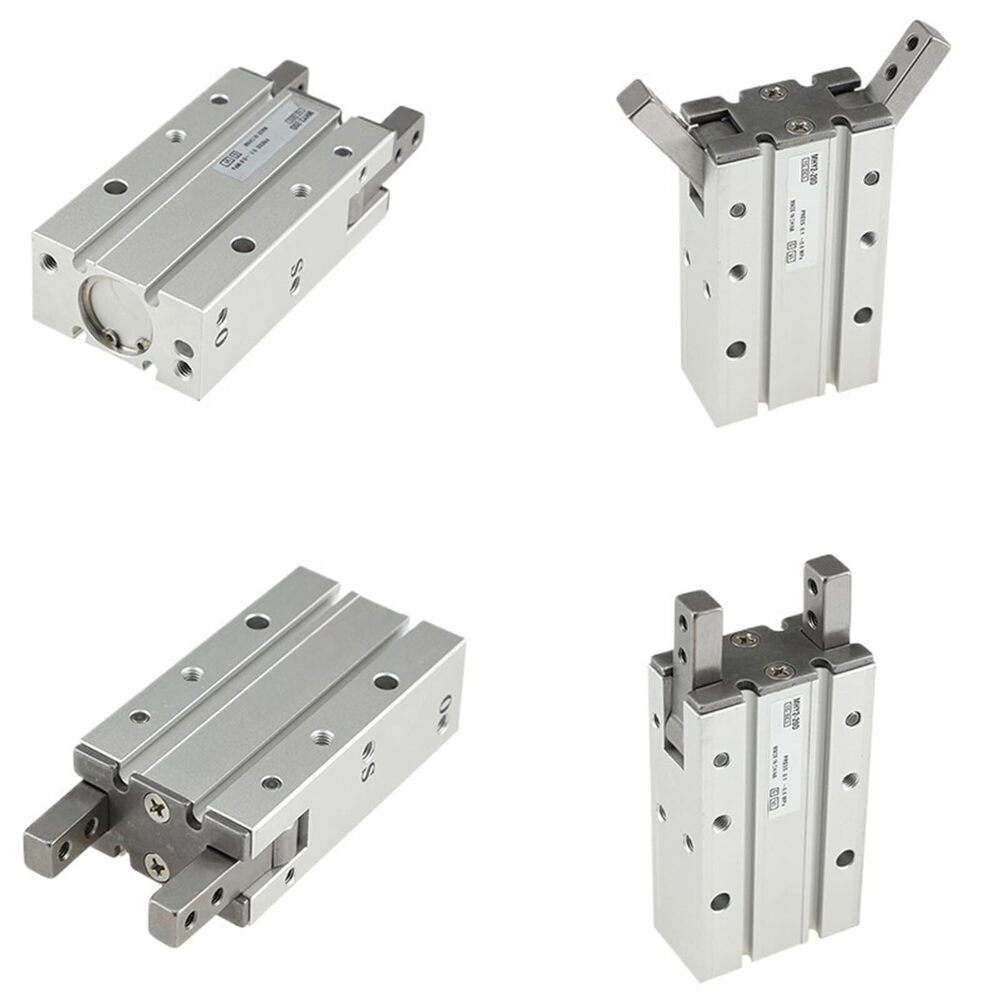

THINK TECH MHC2 / MHY2 / MHZ2 / MHZL2 Pneumatic Cylinder Magnetic, Double Acting

Description

The MHC2, MHY2, MHZ2, and MHZL2 Pneumatic Cylinder Series are compact, precision-designed actuators for gripping and holding applications. These cylinders are magnetic, double acting, and ensure smooth performance in high-speed automation systems. They are widely used in pick-and-place units, robotics, assembly lines, and material handling systems.

Technical Specifications

• Models: MHC2, MHY2, MHZ2, MHZL2

• Type: Pneumatic Gripper Cylinder

• Operation: Double Acting

• Piston Action: Magnetic for position sensing

• Gripper Style: Parallel (MHC2), Angular (MHY2), Wide Opening (MHZ2, MHZL2)

• Bore Sizes: 10 mm 40 mm (varies by model)

• Stroke Range: According to model & jaw opening width

• Working Medium: Filtered Compressed Air (40 m or better)

• Operating Pressure: 0.1 0.7 MPa (1 7 bar)

• Proof Pressure: 1.05 MPa

• Temperature Range: -10C 60C (non-freezing)

• Lubrication: Not required (pre-lubricated)

• Body Material: High strength Aluminum Alloy

• Seal Material: NBR / Viton (optional)

• Mounting Type: Direct / Through Hole / Tapped Hole

• Sensor Mounting: Magnetic reed switch or proximity switch available

Key Features

• Compact & lightweight design for high-speed automation

• Magnetic piston allows sensor mounting for position feedback

• Double acting operation ensures reliable gripping force

• Multiple jaw styles (parallel, angular, wide opening) for application flexibility

• Strong, durable body with long service life

• Easy integration into robotic and automation systems

Applications

• Pick-and-place mechanisms

• Robotic arms and handling units

• Assembly line automation

• Packaging machinery

• Electronic & automotive component handling

• Material transfer and holding systems
