SU MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

About SU MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

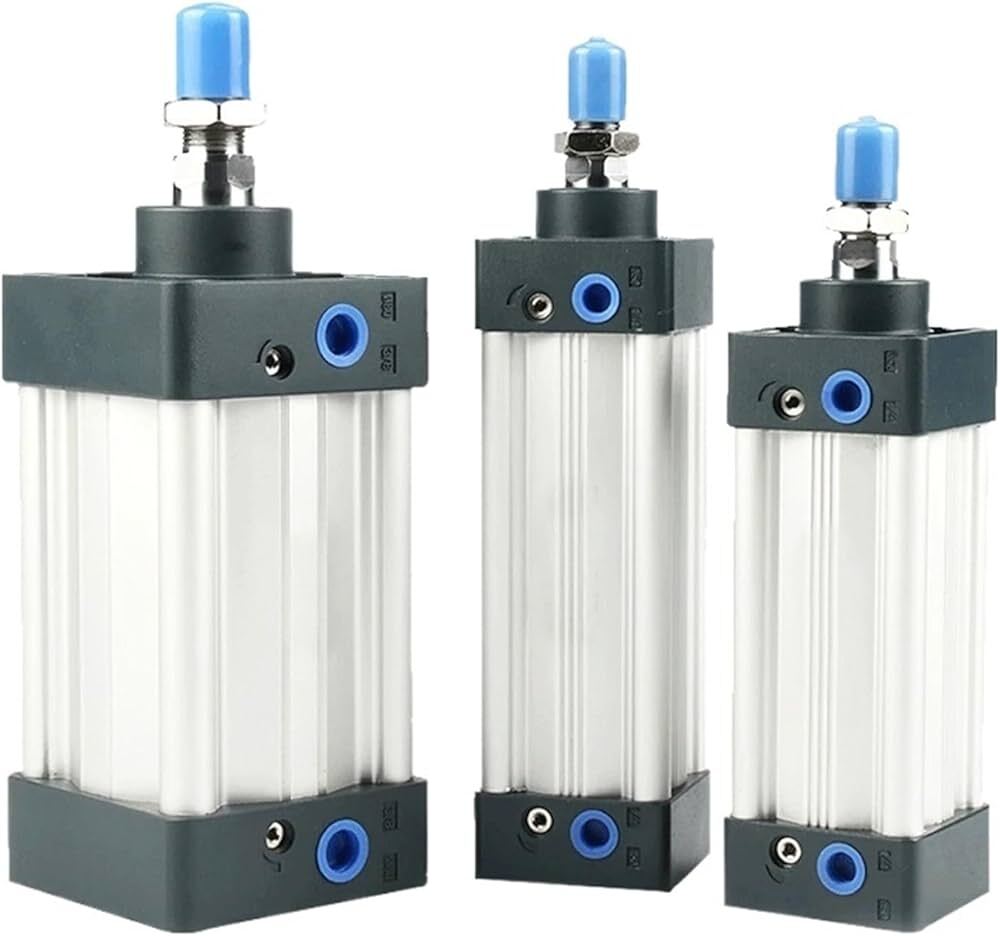

THINK TECH SU Model Pneumatic Cylinder

• Model: SU Series Pneumatic Cylinder

• Type: Double Acting / Double Ended

• Magnet Type: Available in Magnetic (for sensor mounting) and Non-Magnetic versions

• Bore Size: 32 mm to 200 mm (custom sizes available)

• Stroke Length: Standard up to 1000 mm (longer strokes customizable)

• Body Material: Hard anodized aluminum alloy (high strength & corrosion resistance)

• End Cover Material: Aluminum alloy with powder coating

• Piston Rod: High precision stainless steel (hard chrome plated)

• Seal Material: NBR / Viton (optional for high temperature)

• Working Pressure: 0.1 1.0 MPa (110 bar)

• Proof Pressure: 1.5 MPa

• Operating Temperature: -20C to +80C (Viton option up to +150C)

• Medium: Filtered Compressed Air (Lubricated or Non-Lubricated)

• Cushioning: Adjustable air cushion at both ends

• Mounting Types: Foot Mount, Flange Mount, Clevis, Trunnion, Customized Mounting

• Special Options:

  • Adjustable stroke length

  • Double-ended piston rod design

  • Customized bore & stroke as per application

  • Sensor slots available for magnetic reed switches (for magnetic type)
