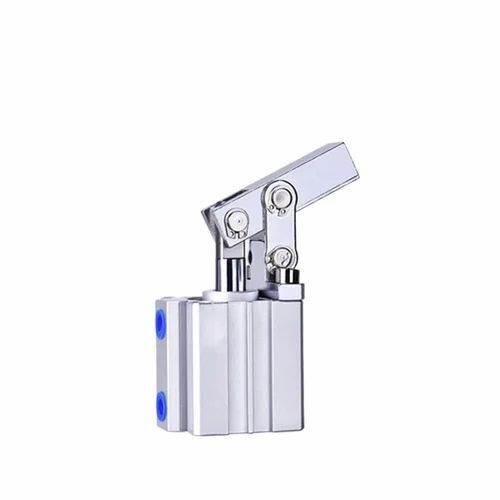

About JGL MODEL PNEUMATIC CYLINDER MAGNETIC

THINK TECH JGL Model Pneumatic Cylinder (Magnetic)

• Model No.: JGL

• Type: Pneumatic Cylinder (Compact, Guided Type)

• Operation: Double Acting

• Magnetic Function: With magnetic piston for auto switch sensing

• Bore Size: 6, 10, 16, 20, 25, 32 mm (as per model)

• Stroke Range: 5 mm 100 mm (customizable on request)

• Guide Type: Dual rod guide prevents piston rod rotation, provides high stability

• Medium Used: Filtered Compressed Air (40 m filtration recommended)

• Working Pressure Range: 0.1 0.9 MPa (1 9 bar)

• Proof Pressure: 1.35 MPa

• Working Temperature: -5C +70C (no freezing)

• Cushioning: Rubber bumpers on both ends

• Mounting Type: Direct body mount / customized brackets

• Body Material: Hard anodized aluminum alloy

• Piston Rod: High strength carbon steel with hard chrome plating

• Seals: NBR (Viton optional for high-temperature)

• Features:

  • Compact and space-saving design

  • High precision and non-rotating piston movement

  • Magnetic piston allows reed/proximity sensor mounting

  • Smooth operation, long cycle life

• Applications:

  • Precision clamping and positioning

  • Automated machinery

  • Pick and place systems

  • Pneumatic presses

  • Packaging and electronics industry
