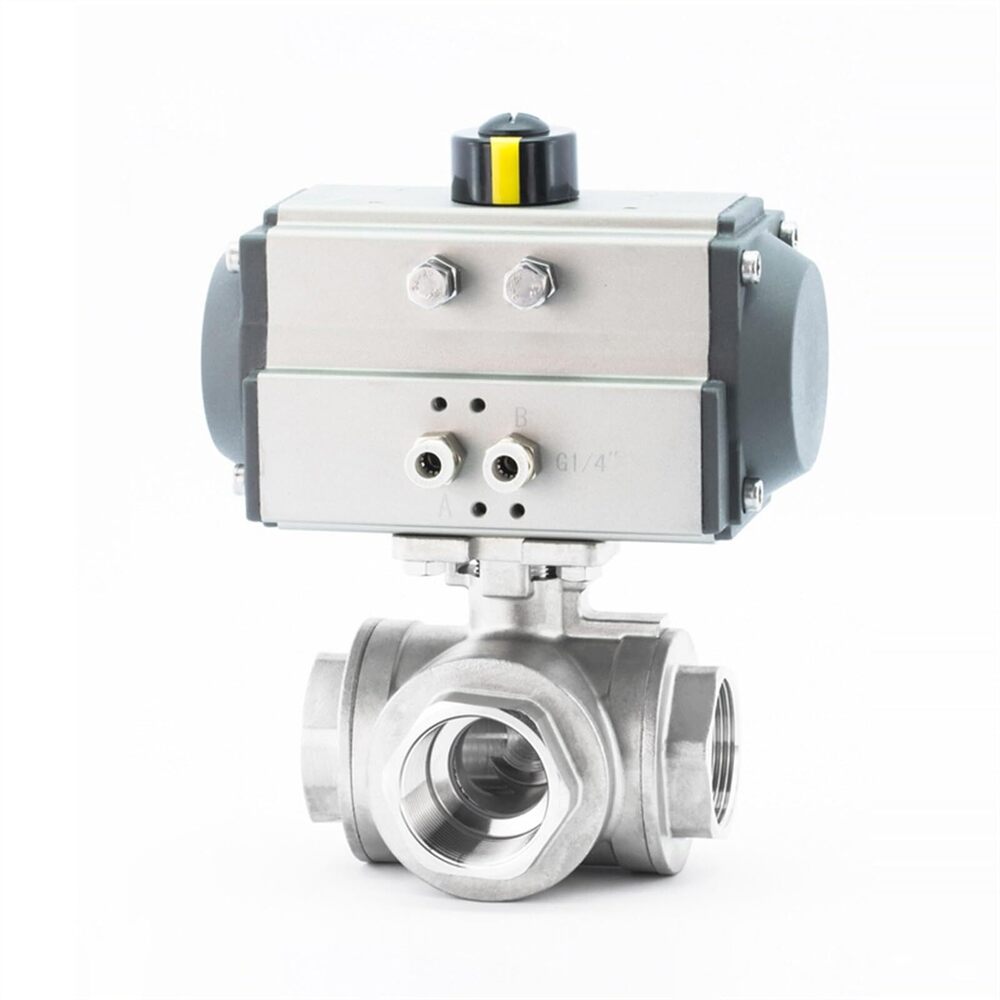

PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600

Name: PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600
Brand: METAL TECH ENTERPRISE
Price: 2000 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 15 Pieces

PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600 Specification

Usage
Industrial

Size
Standard

Material
Stainless Steel

Power
Pneumatic

Pressure
Medium Pressure

Temperature
High Temperature

Media
Water

PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600 Trade Information

Minimum Order Quantity
15 Pieces

Supply Ability
50 Pieces Per Month

Delivery Time
7 Days

About PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600

THNIK TECH Pneumatic Operated 3-Way Ball Valve Specification

General Description

A pneumatically actuated 3-way ball valve designed for reliable diverting or mixing of process media. The valve provides quick quarter-turn automation with high sealing performance and optional manual override. Suitable for water, air, gas, oil, chemical, and other industrial fluids.

Valve Body

Type: 3-Way Ball Valve (T-Port / L-Port configuration)
Size Range: to 12 (DN15 DN300)
Body Material Options:
- Stainless Steel SS304 / SS316
- Carbon Steel (WCB)
- PVC / PP (corrosive applications)
Seat Material: PTFE / RPTFE / PPL / Metal seat (on request)
Pressure Rating: PN16 / PN25 / ANSI 150# / PN40
Temperature Range: -20C to +180C (depending on seat material)
End Connections: Screwed (BSP / NPT) / Flanged (ANSI / DIN / JIS) / Tri-clamp (Hygienic)
Flow Pattern:
- L-Port: Diverting flow between two outlets
- T-Port: Mixing or distributing flow between three ports

Pneumatic Actuator

Type: Double Acting / Single Acting (Spring Return)
Air Supply Pressure: 5 8 bar
Operating Medium: Clean, dry compressed air
Body Material: Hard Anodized Aluminum / Stainless Steel
Operation: 90 quarter-turn
Torque Output: Calculated as per valve size and line pressure

Features

Available in L-Port or T-Port configurations
High cycle life and reliable sealing
Compact design with lightweight actuator
Option for manual override and locking device
Bubble-tight shut-off with low operating torque
Suitable for on/off or control applications

Optional Accessories

Solenoid Valve (24V DC / 110V / 230V AC)
Limit Switch Box (open/close feedback)
Air Filter Regulator with Gauge
Positioner (for modulating service)

Applications

Chemical & Petrochemical
Oil & Gas
Water & Wastewater Systems
Food & Beverage Processing
Pharmaceutical Plants
HVAC & Utility Piping Systems
Industrial Automation

Keywords

Pneumatic Operated 3 Way Ball Valve
Pneumatic 3 Way Actuated Ball Valve
L Port Pneumatic Ball Valve
T Port Pneumatic Ball Valve
Pneumatic Control 3 Way Ball Valve
Stainless Steel Pneumatic 3 Way Ball Valve
Pneumatic Quarter Turn 3 Way Valve
Pneumatic 3 Way Mixing Valve
Pneumatic Diverting 3 Way Ball Valve
Industrial Pneumatic 3 Way Valve
Pneumatic Ball Valve Manufacturer / Supplier / Exporter

Advanced Flow Control Solution

These pneumatic actuator-operated ball valves provide precise control in 3-way and 4-way configurations, making them ideal for complex industrial processes. Their construction from premium stainless steel and other alloys ensures resistance to high temperatures and corrosive media, enhancing durability in demanding environments.

Flexibility and Industrial Versatility

Compatible with various piping systems, these valves come in multiple material optionsSS304, SS316, WCB, CI, and CSand cover standard sizes and pressure classes. This versatility makes them suitable for numerous industries, from water treatment plants to chemical manufacturing.

FAQs of PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE SCREWED BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600:

Q: How does a pneumatic actuator operate a 3-way or 4-way ball valve?

A: A pneumatic actuator uses compressed air to rotate or move the ball inside the valve, enabling automated switching between flow paths in either 3-way or 4-way configurations. This process allows for rapid and reliable control without manual intervention.

Q: What materials are available for these ball valves and why are they important?

A: These valves are available in SS304, SS316, WCB, CI, and CS. Stainless steels provide excellent corrosion resistance, WCB offers strength under high pressures, and cast iron is cost-effective for less critical applications. The choice of material depends on the media, pressure, and temperature requirements of the system.

Q: When should I choose a 3-way versus a 4-way ball valve for my industrial setup?

A: A 3-way valve is used for diverting or mixing flows, while a 4-way valve is preferred for more complex flow control, such as reversing the direction of fluid. The best selection depends on your specific flow requirements and system design.

Q: Where are these pneumatic actuator ball valves commonly used?

A: These valves are widely used in industrial environments across India, especially in water treatment facilities, chemical processing, HVAC systems, and manufacturing plants requiring automated fluid control under challenging conditions.

Q: What is the process for installing a screwed body ball valve?

A: Installation involves screwing the valve body directly onto the corresponding threaded pipeline ends. Proper sealing tape or compound is typically applied to ensure leak-tight connections, and the pneumatic actuator is connected to the air supply following manufacturer guidelines.

Q: What are the main benefits of using these pneumatic actuator-operated valves?

A: These valves offer significant benefits including automatic operation, improved reliability, rapid flow control, reduced manual labor, and long-term durability in harsh industrial conditions, making them highly cost-effective for ongoing use.
