General Description

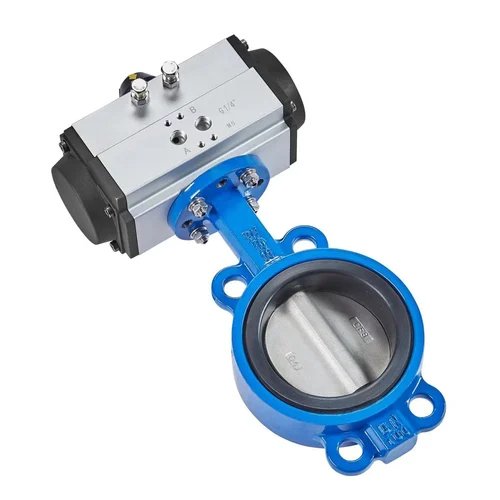

A quarter-turn butterfly valve equipped with a pneumatic actuator, designed for reliable on/off and throttling control of liquids, gases, and semi-solids. Lightweight, cost-effective, and suitable for a wide range of industrial applications.

Valve Body

• Type: Wafer / Lug / Double Flanged Butterfly Valve

• Size Range: 2 to 48 (DN50 DN1200)

• Body Material Options:

  • Cast Iron (CI)

  • Ductile Iron (DI)

  • Carbon Steel (WCB)

  • Stainless Steel (SS304 / SS316)

• Disc Material: SS304 / SS316 / CI / DI / Aluminum Bronze

• Seat Material: EPDM / NBR / PTFE / Viton

• Pressure Rating: PN10 / PN16 / ANSI 150#

• Temperature Range: -20C to +200C (depending on seat material)

• End Connections: Wafer Type / Lug Type / Flanged

Pneumatic Actuator

• Type: Double Acting / Single Acting (Spring Return)

• Air Supply Pressure: 5 8 bar

• Operating Medium: Clean, dry compressed air

• Body Material: Anodized Aluminum Alloy / Stainless Steel

• Operation: 90 quarter-turn rotary actuator

• Torque Output: Sized as per valve bore and line pressure

Features

• Compact, lightweight design

• Tight shut-off with bubble-tight sealing

• High cycle life and low operating torque

• Quick quarter-turn operation

• Option for manual override and position indicator

• Wide range of accessories available

Optional Accessories

• Solenoid Valve (24V DC / 110V / 230V AC)

• Limit Switch Box (open/close feedback)

• Air Filter Regulator with Gauge

• Positioner (Pneumatic / Electro-pneumatic)

Applications

• Water & Wastewater Treatment

• HVAC Systems

• Oil & Gas

• Chemical & Petrochemical

• Power Plants

• Food & Beverage Industry

• Pharmaceutical Plants
