ELECTRIC ACTUATOR OPERATED VALVES

About ELECTRIC ACTUATOR OPERATED VALVES

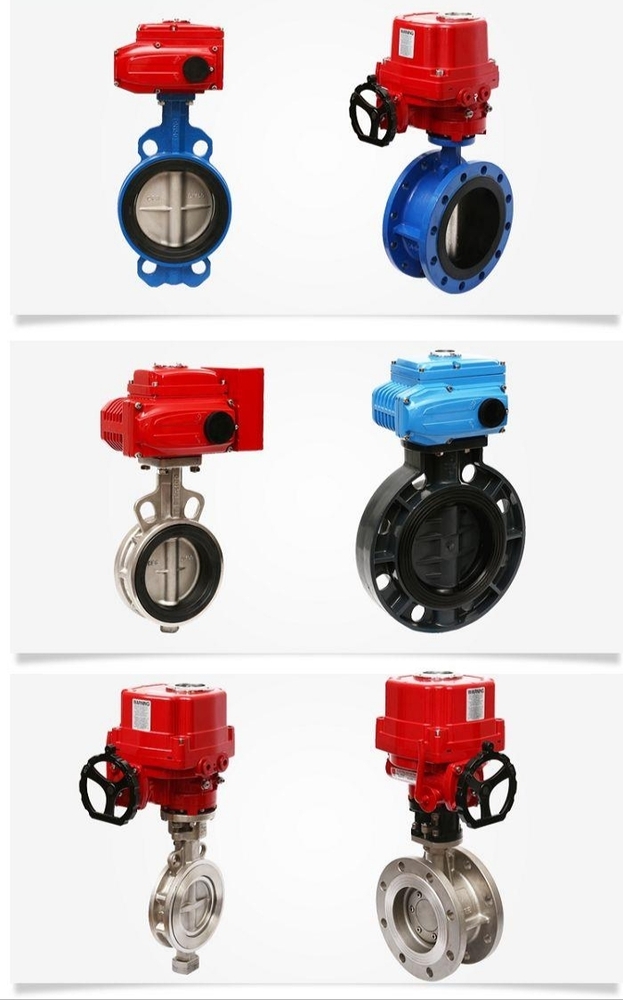

THINK TECH Electric Actuator Operated Valves

• Type: Electric Actuator Operated Butterfly Valve / Ball Valve

• Valve Body Material:

  • Cast Iron / Ductile Iron

  • Carbon Steel (WCB)

  • Stainless Steel SS304 / SS316

• Disc Material: Stainless Steel / Ductile Iron / Aluminum Bronze

• Seat Material: EPDM / NBR / PTFE / Viton

• End Connection: Wafer / Lug / Flanged (ANSI / DIN / JIS Standards)

• Size Range: 1.5 to 48 (DN40 DN1200)

• Pressure Rating: PN10 / PN16 / 150# / 300# Class

• Actuator Type:

  • On/Off Type

  • Modulating Type (420mA, 010V control signal)

  • Intelligent Actuator with Feedback

• Power Supply: 24V DC / 110V AC / 220V AC / 380V AC, 50/60 Hz

• Control Options: Manual Override, Limit Switch, Position Feedback, Failsafe (optional)

• Temperature Range: -20C to +200C (depends on seat & body material)

• Standards: API 609, BS EN593, ISO 5211 Mounting Pad

• Applications: Water, Air, Oil, Gas, HVAC, Food Processing, Chemical, Power Plants

Keywords

• Electric Actuator Operated Valve

• Motorized Butterfly Valve

• Motorized Ball Valve

• Electric Control Valve

• On/Off Type Actuated Valve

• Modulating Electric Actuator Valve

• Flanged Motorized Valve

• Wafer Type Electric Butterfly Valve

• SS304 / SS316 Electric Operated Valve

• Industrial Electric Actuator Valves
