About ASC SERIES ACCURATE FLOW CONTROL VALVE

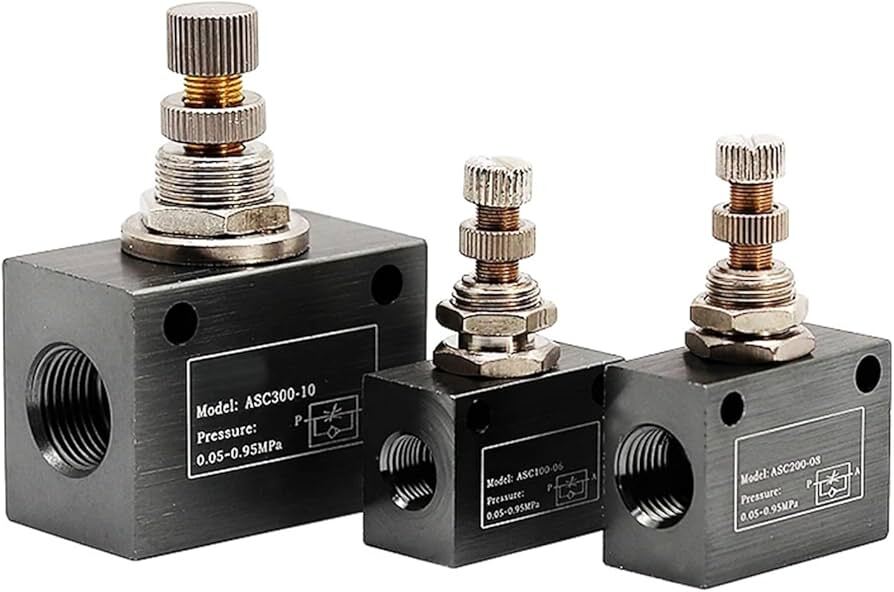

THINK TECH ASC Series Accurate Flow Control Valve Specification

General Description

The ASC Series Accurate Flow Control Valve is designed for precise adjustment of airflow in pneumatic systems. Compact and reliable, it allows accurate speed regulation of actuators, ensuring smooth machine operation and extended service life. Suitable for use in automation, machinery, and general pneumatic control applications.

Technical Specifications

• Model Series: ASC (Accurate Flow Control)

• Type: Inline / Elbow Type Flow Control Valve

• Port Size Options: M5, 1/8", 1/4", 3/8", 1/2" (BSP / NPT thread available)

• Body Material: Brass / Nickel-plated Brass / Aluminum with Plastic Knob

• Seal Material: NBR / Viton (on request)

• Working Pressure Range: 0.05 1.0 MPa (0.5 10 bar)

• Proof Pressure: 1.5 MPa (15 bar)

• Temperature Range: 0C to +60C (standard)

• Control: Bi-directional / Meter-in / Meter-out

• Flow Range: Adjustable fine tuning for accurate control

• Locking: Screw-lock knob for precise setting

• Mounting: Inline direct connection to actuator or manifold

Features

• Compact design with accurate flow regulation

• Easy push-in fitting connection for PU/PA tubing

• Fine adjustment with knurled knob for precision control

• High durability and corrosion-resistant body

• Available in straight (inline) and elbow types

• Ensures smooth actuator motion and prevents jerky movements

Applications

• Pneumatic cylinders (speed control)

• Packaging machinery

• Textile & printing machines

• Food & beverage automation

• General industrial automation

• Robotics & assembly lines
