ELECTRIC ACTUATOR

About ELECTRIC ACTUATOR

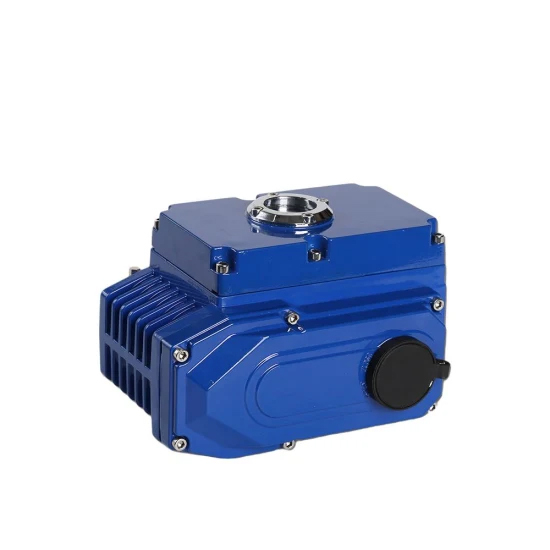

THINK TECH Electric Actuator

• Type: Quarter Turn / Multi-Turn Electric Actuator

• Torque Range: 50 Nm to 3000 Nm (depending on model)

• Power Supply:

  • 24V DC

  • 110V AC / 220V AC / 380V AC, 50/60Hz

• Control Mode:

  • On/Off (Open-Close)

  • Modulating (420mA, 010V signal input)

  • Intelligent Control with Position Feedback

• Operating Angle: 0 90 (Quarter Turn) / Multi-turn options

• Protection Class: IP65 / IP67 / IP68 (optional)

• Housing Material: Aluminum Alloy (Powder Coated, Corrosion Resistant)

• Operating Temperature: -20C to +70C (higher temp. with heater option)

• Manual Override: Handwheel / Handle for emergency operation

• Indicator: Mechanical Position Indicator

• Mounting Standard: ISO 5211 Interface for direct valve mounting

• Features:

  • Compact & lightweight design

  • High corrosion resistance

  • Long service life with low maintenance

  • Thermal overload protection

  • Available with failsafe (spring return) or battery backup option
