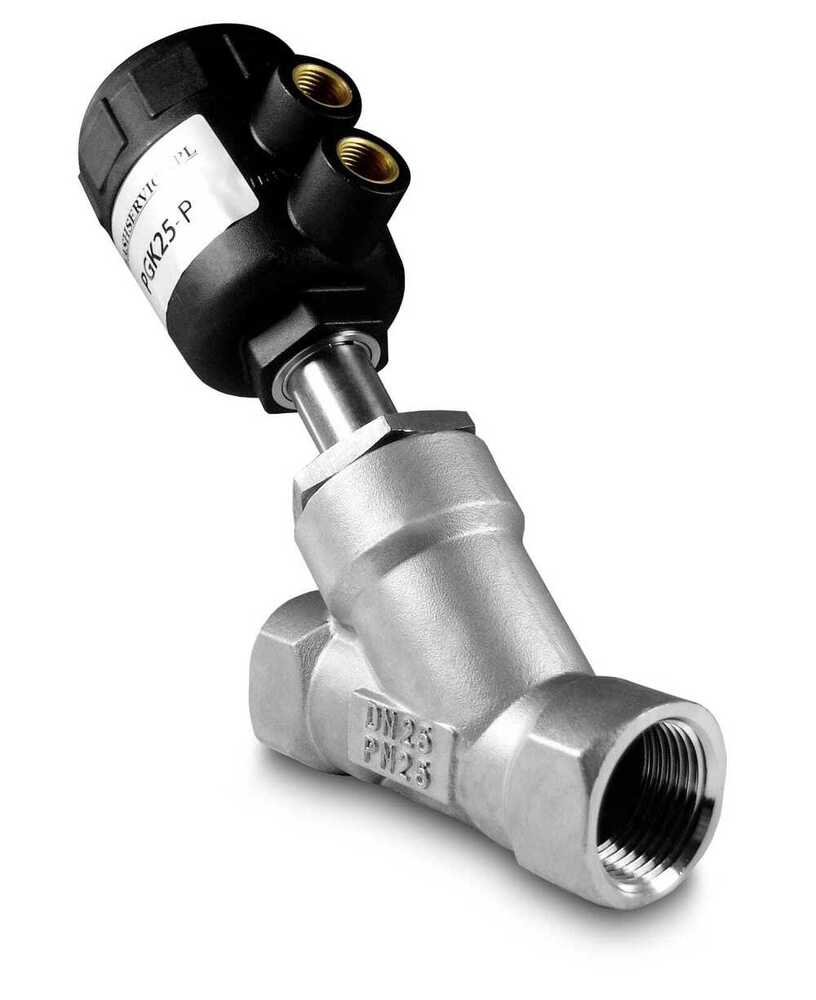

About 2-2 WAY PNEUMATIC ACTUATED PISTON ANGLE SEAT Y TYPE CONTROL VALVE SCREWED AND FLANGED

THINK TECH Pneumatic Y-Type Angle Seat Valve Specification

General Description

A robust, pneumatically operated Y-type angle seat valve designed for reliable shut-off and control of liquids, gases, and steam. Its angled seat design ensures high flow rates with minimal pressure loss and long service life, even in demanding industrial environments.

Valve Body

• Type: Y-Type Angle Seat Valve (Normally Closed / Normally Open)

• Size Range: to 4 (DN15 DN100)

• Body Material Options:

  • Stainless Steel SS304 / SS316

  • Bronze / Brass

  • Cast Steel (special applications)

• Seat / Seal Material: PTFE / PTFE+Glass / EPDM / NBR

• Pressure Rating: Up to PN16 / PN25 (1625 bar)

• Temperature Range: -10C to +180C (standard) | up to 220C (high-temp version)

• Flow Characteristic: High Cv, low pressure drop

• End Connections: Screwed (BSP / NPT) / Flanged (ANSI / DIN / JIS) / Welded / Tri-clamp (sanitary)

Pneumatic Actuator

• Type: Single Acting (Spring Return) / Double Acting

• Air Supply Pressure: 4 8 bar

• Operating Medium: Dry, filtered compressed air

• Actuator Housing: Stainless Steel / Anodized Aluminum

• Action: Linear piston actuator with 90 lifting stroke

• Control Function: Normally Closed (NC) / Normally Open (NO)

Features

• Self-cleaning, angled seat design for higher flow rates

• Long cycle life and reliable sealing

• Compact actuator design with visual position indicator

• Suitable for steam, water, air, oil, inert gases, and aggressive fluids

• Option for positioner, solenoid valve, and feedback unit

Applications

• Steam systems

• Food & Beverage processing

• Pharmaceutical plants

• Chemical industries

• Water treatment

• Textile & paper industries

• General industrial automation
