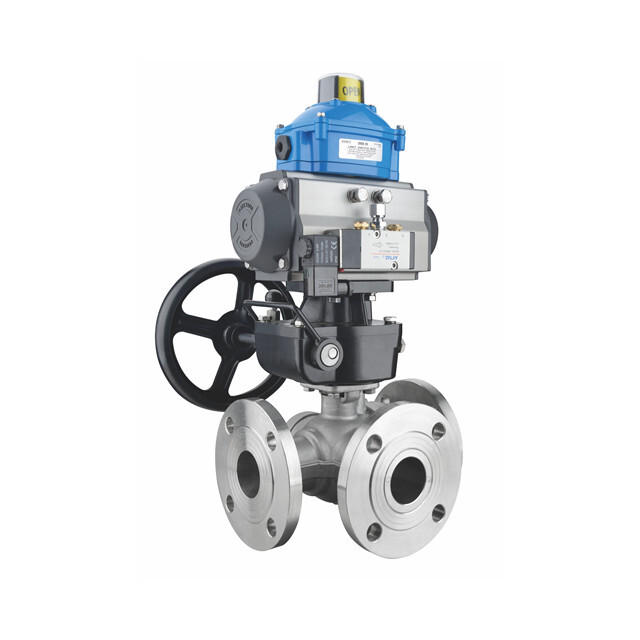

About PNEUMATIC ACTUATOR OPERATE 3 WAY 4 WAY BALL VALVE FLANGEND BODY SS304, SS316, WCB, CI, CS, CLASS 150 300 600

THINK TECH Pneumatic Operated & Manual Override Ball Valve Specification

General Description

Quarter-turn ball valve with pneumatic actuator and manual override option. Ensures reliable automated operation with emergency manual control during air supply failure.

Valve Body

• Type: 2-way / 3-way Ball Valve

• Size Range: to 12 (DN15 DN300)

• Material Options: Stainless Steel (SS304 / SS316), Carbon Steel (WCB), PVC / PP

• Seat Material: PTFE / RPTFE / PPL / Metal Seat (on request)

• Pressure Rating: PN16, PN25, ANSI 150#, PN40

• Temperature Range: -20C to +180C (depending on seat material)

• End Connections: Screwed (BSP / NPT), Flanged (ANSI / DIN / JIS), Tri-clamp (Sanitary)

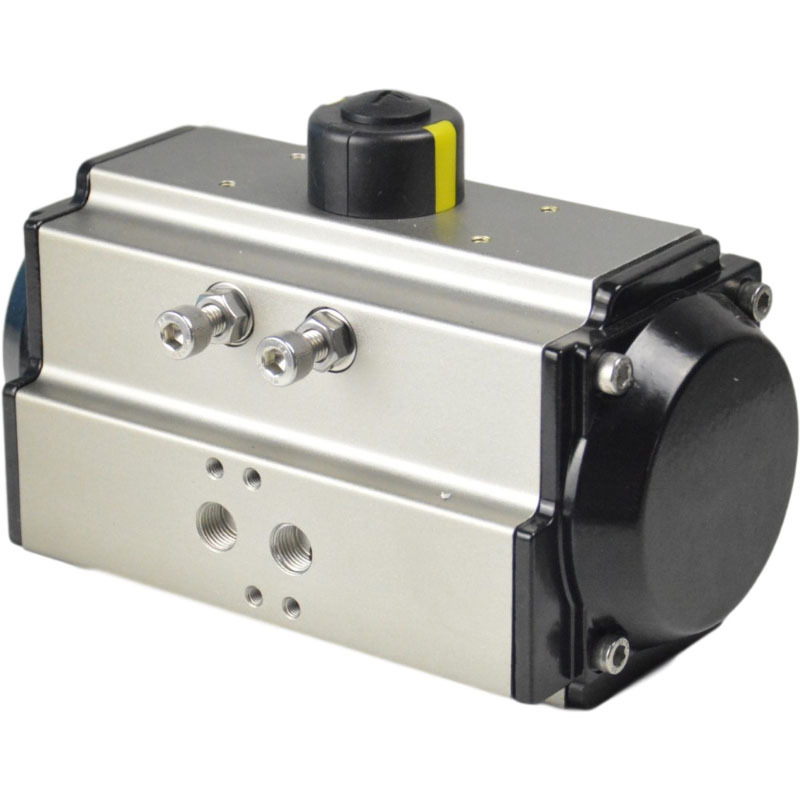

Pneumatic Actuator

• Type: Double Acting / Single Acting (Spring Return)

• Air Supply Pressure: 5 8 bar

• Operating Medium: Clean, dry compressed air

• Body Material: Hard Anodized Aluminum / Stainless Steel

• Operation: 90 quarter-turn

• Torque Output: As per valve size & line pressure

Manual Override

• Integrated hand lever or gear operator

• Lockable handle option

• Smooth switch between pneumatic & manual operation

Optional Accessories

• Solenoid Valve (24V DC / 230V AC)

• Limit Switch Box / Position Indicator

• Air Filter Regulator with Gauge

• Electro-pneumatic Positioner (for throttling control)

Applications

• Oil & Gas

• Chemical & Petrochemical

• Food & Beverage (sanitary version)

• Pharmaceutical Plants

• Power Generation

• Water & Wastewater Treatment
