CDU MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING

About CDU MODEL PNEUMATIC CYLINDER MAGNETIC AND NON MAGNETIC DOUBLE ACTING

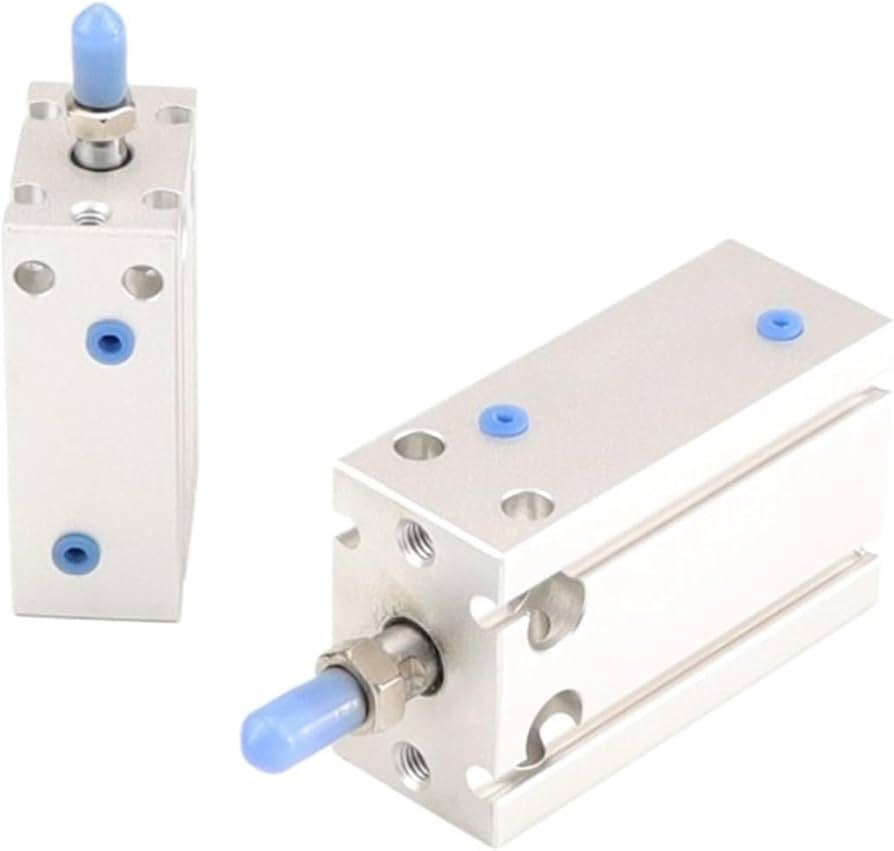

THINK TECH CDU Model Pneumatic Cylinder

• Model: CDU (Compact Type Cylinder)

• Type: Double Acting (air extends and retracts piston)

• Magnetic / Non-Magnetic: Available with magnetic piston for sensor mounting, or without magnet

• Bore Size: 6, 10, 16, 20, 25, 32 mm

• Stroke Length: Standard stroke 5 mm to 100 mm (custom stroke available)

• Acting Type: Double Acting (air supply both ends)

• Operating Pressure: 0.1 0.9 MPa (1 9 bar)

• Proof Pressure: 1.35 MPa

• Operating Temperature: -20C to +70C

• Operating Medium: Filtered compressed air (lubricated or non-lubricated)

• Cushioning: Rubber bumpers on both ends

• Body Material: Hard anodized aluminium alloy (lightweight, corrosion-resistant)

• Piston Rod: Stainless steel (high strength, wear-resistant)

• Port Size: M5, 1/8 (depends on bore size)

• Mounting Style: Through-hole / Threaded hole mounting

• Features:

  • Ultra-compact, space-saving design

  • High precision & repeatability

  • Magnetic option for proximity sensor mounting

  • Smooth operation, long service life

  • Easy to install in limited spaces
