About SDA MODEL PNEUMATIC CYLINDER FEMALE SHAFT MAGNETIC AND NON MAGNETIC DOUBLE ACTING AND DOUBLE ENDED ADJUSTABLE AND CUSTOMIZE

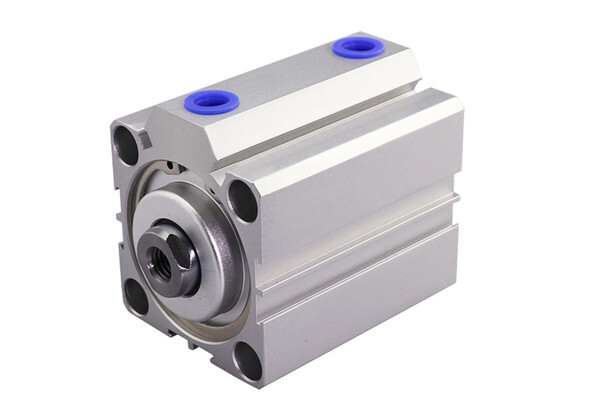

THINK TECH SDA Model Pneumatic Cylinder Female Shaft Specification

General Description

The SDA Series Compact Pneumatic Cylinder with Female Shaft is a space-saving, double-acting cylinder designed for applications requiring internal female-threaded rod ends. It is available in magnetic (sensor compatible) and non-magnetic (standard) versions, with options for double-ended piston rod, adjustable cushioning, and customized strokes. The SDA cylinder is widely used in automation systems where compact design and precision control are required.

Technical Specifications

• Model: SDA Series Compact Pneumatic Cylinder Female Shaft

• Type:

  • Double Acting (Standard)

  • Double Ended Shaft (Optional)

  • Magnetic (sensor mountable) / Non-Magnetic (standard)

• Rod End Type: Female Threaded (for direct bolt/screw fitting)

• Bore Sizes: 12mm to 100mm

• Stroke Range: Up to 100mm (custom strokes available)

• Working Pressure: 0.1 1.0 MPa (1 10 bar)

• Maximum Pressure: 1.5 MPa

• Operating Medium: Filtered compressed air (lubricated or non-lubricated)

• Operating Temperature: -5C to +70C (special seals for -20C to +150C)

• Cylinder Body: High-strength Aluminum Alloy, hard anodized finish

• End Covers: Aluminum Die Cast with integrated cushion adjustment

• Piston Rod: Stainless Steel (hard chrome plated) with female threaded end

• Seals: NBR (standard) / Viton (high temperature option)

• Cushioning: Adjustable at both ends

• Port Size: M5, 1/8", 1/4" (depending on bore size)

• Mounting Options:

  • Direct Mount (Compact Body)

  • Foot Mount

  • Flange Mount

  • Clevis Mount

  • Customized mounting available on request

Features

• Compact body design ideal for space-limited applications

• Female-threaded piston rod allows easy connection with bolts or machine parts

• Available in magnetic version for position sensing or non-magnetic for standard use

• Double acting / double ended rod options for precision operations

• Adjustable cushioning reduces impact and noise at stroke ends

• Stainless steel piston rod ensures durability and corrosion resistance

• Custom bore stroke combinations available

Applications

• Precision Assembly & Robotics

• Electronics & Semiconductor Machinery

• Packaging & Labeling Systems

• Printing & Textile Machinery

• Material Handling Equipment

• Automation Fixtures & SPM (Special Purpose Machines)

• Compact motion systems with limited space
