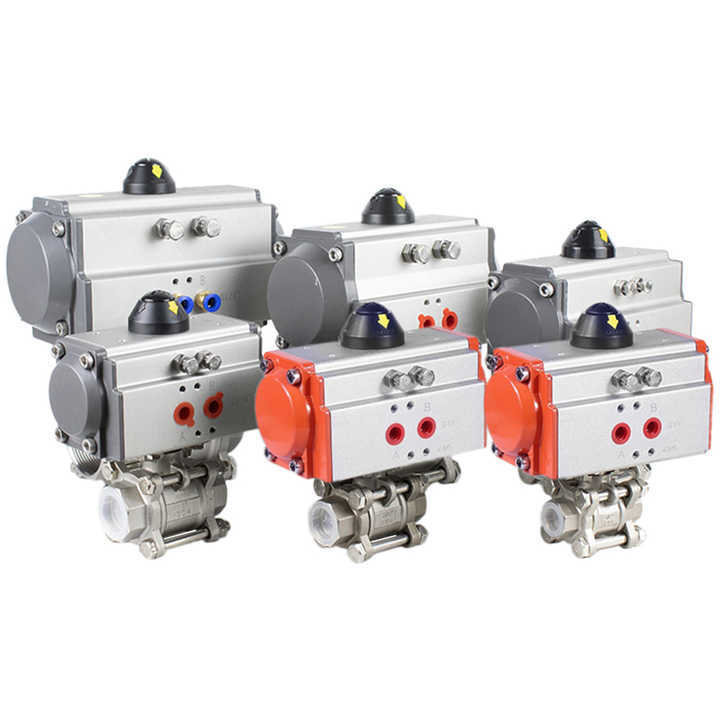

THNIK TECH Pneumatic Operated 2-Way Ball Valve Specification

General Description

A pneumatically actuated 2-way ball valve designed for quick and reliable on/off control of liquids, gases, and semi-solids. Operated with a quarter-turn actuator, this valve ensures bubble-tight shut-off, long service life, and high performance for industrial automation.

Valve Body

• Type: 2-Way Ball Valve (On/Off Type)

• Size Range: to 12 (DN15 DN300)

• Body Material Options:

  • Stainless Steel SS304 / SS316

  • Carbon Steel (WCB)

  • Cast Iron / Ductile Iron

  • PVC / PP (for corrosive media)

• Seat Material: PTFE / RPTFE / PPL / Metal Seat (on request)

• Pressure Rating: PN16 / PN25 / ANSI 150# / PN40

• Temperature Range: -20C to +180C (depending on seat material)

• End Connections: Screwed (BSP / NPT) / Flanged (ANSI / DIN / JIS) / Tri-clamp (Hygienic)

Pneumatic Actuator

• Type: Double Acting / Single Acting (Spring Return)

• Air Supply Pressure: 5 8 bar

• Operating Medium: Clean, dry compressed air

• Body Material: Hard Anodized Aluminum Alloy / Stainless Steel

• Operation: 90 quarter-turn

• Torque Output: Sized as per valve bore and pressure conditions

Features

• Compact quarter-turn operation

• Bubble-tight sealing with PTFE seat

• High cycle life with low maintenance

• Optional manual override available

• Lightweight actuator design

• Suitable for on/off or control service

Optional Accessories

• Solenoid Valve (24V DC / 110V / 230V AC)

• Limit Switch Box (Open/Close position feedback)

• Air Filter Regulator with Gauge

• Electro-pneumatic Positioner (for modulating service)

Applications

• Water & Wastewater Systems

• Oil & Gas

• Chemical & Petrochemical

• Food & Beverage Industry

• Pharmaceutical Plants

• HVAC & Utility Systems

• General Industrial Automation
