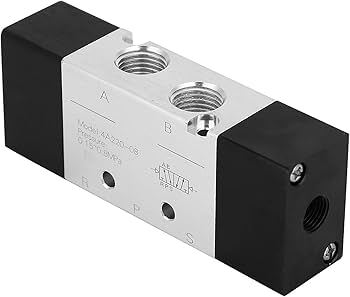

A SERIES 5-3 WAY 3 POSITION DOUBLE PILOT VALVE

About A SERIES 5-3 WAY 3 POSITION DOUBLE PILOT VALVE

THINK TECH A SERIES 5/3 WAY 3 POSITION DOUBLE PILOT VALVE

Technical Details

• Product Type: Pneumatic Directional Control Valve

• Series: A Series

• Valve Type: 5/3 Way, 3 Position

• Actuation: Double Pilot (pneumatic pilot operated)

• Positions:

  • Closed Centre (All ports blocked at mid-position)

  • Exhaust Centre (Supply closed, outputs open to exhaust)

  • Pressure Centre (Outputs pressurized at mid-position) (depends on variant)

• Port Size: Typically available in 1/8", 1/4", 3/8", 1/2" (BSP/NPT)

• Working Pressure: 0.15 0.8 MPa (1.5 8 bar)

• Proof Pressure: Up to 1.2 MPa (12 bar)

• Working Medium: Filtered and lubricated / non-lubricated compressed air

• Ambient & Fluid Temperature: 5C to 60C

• Body Material: Aluminium alloy

• Seal Material: NBR (Nitrile Rubber)

• Response Time: Fast switching, typically <50 ms

• Mounting: Manifold or individual sub-base

• Lubrication: Not required (but can be used if needed)

• Manual Override: Momentary type (for testing and setup)
