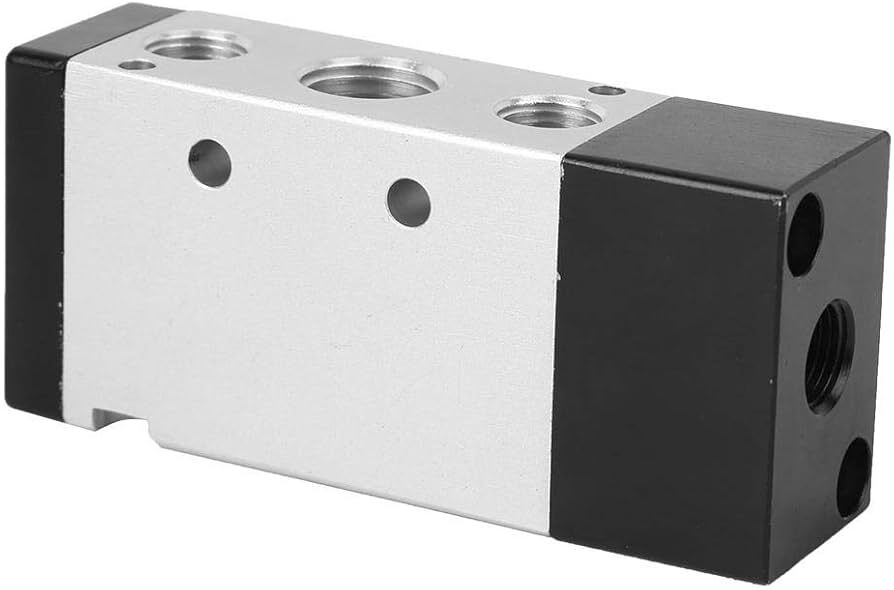

A SERIES 5-2 WAY SINGLE PILOT VALVE
A SERIES 5-2 WAY SINGLE PILOT VALVE

A SERIES 5-2 WAY SINGLE PILOT VALVE

Price 400 INR/ Piece

MOQ : 15 Pieces

A SERIES 5-2 WAY SINGLE PILOT VALVE Specification

  • Voltage
  • 230 Volt (v)
  • Usage
  • Industrial
  • Power
  • Electrical
  • Size
  • Standard
  • Pressure
  • High Pressure
  • Media
  • Water
  • Port Size
  • 1/4" 3/8" 1/2"
  • Color
  • Sliver


A SERIES 5-2 WAY SINGLE PILOT VALVE Trade Information

  • Minimum Order Quantity
  • 15 Pieces
  • Supply Ability
  • 50 Pieces Per Month


About A SERIES 5-2 WAY SINGLE PILOT VALVE

THINK TECH A Series 5/2 Way Single Pilot Valve Specification

General Description

The A Series 5/2 Way Single Pilot Valve is a pneumatic directional control valve designed to control the operation of double-acting cylinders and actuators. With a single pilot signal, the valve shifts and stays in position until reset by spring return. Compact, durable, and reliable, it is widely used in industrial automation and pneumatic control systems.


Technical Specifications

  • Model Series: A Series

  • Valve Type: 5/2 Way Directional Control Valve

  • Operation: Single Pilot (Pilot Signal + Spring Return)

  • Port Size: 1/8", 1/4", 3/8", 1/2" (BSP / NPT)

  • Body Material: Aluminum Alloy (Anodized)

  • Seals: NBR / Viton (optional)

  • Mounting: Inline / Manifold Mounting

  • Actuation: Pneumatic pilot with spring return

  • Working Pressure Range: 0.15 0.8 MPa (1.5 8 bar)

  • Proof Pressure: 1.2 MPa (12 bar)

  • Temperature Range: 0C to +70C (standard)

  • Medium: Filtered, lubricated or non-lubricated compressed air

  • Response Time: < 0.05 sec (depending on port size)


Features

  • Compact and lightweight design

  • High flow capacity with low pressure drop

  • Reliable shifting with pilot signal

  • Spring return ensures fail-safe position

  • Long service life with precision machining

  • Easy installation and maintenance

  • Compatible with manifold mounting


Applications

  • Double acting pneumatic cylinders

  • Packaging machinery

  • Textile & printing machines

  • Food & beverage automation

  • General industrial automation

  • Pneumatic control panels


Keywords

  • A Series 5/2 Way Single Pilot Valve

  • Pneumatic 5/2 Way Directional Control Valve

  • 5/2 Single Pilot Valve Pneumatic

  • Pilot Operated 5/2 Way Valve

  • Pneumatic Directional Control Valve 5/2

  • Single Pilot Pneumatic Valve Supplier

  • A Series Pneumatic Control Valve

  • Industrial Pilot Operated Valve

  • 5/2 Way Pneumatic Valve Manufacturer / Exporter

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in PILOT VALVE Category

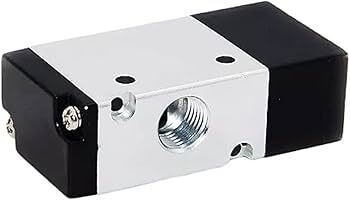

A SERIES 3-2 WAY SINGLE PILOT VALVE 1-8-1-4-3-8-1-2

A SERIES 3-2 WAY SINGLE PILOT VALVE 1-8-1-4-3-8-1-2

Price 300 INR / Piece

Minimum Order Quantity : 50 Pieces

Power : Electrical

Port Size : 1/8" 1/4" 3/8" 1/2"

Pressure : Medium Pressure

Size : Standard

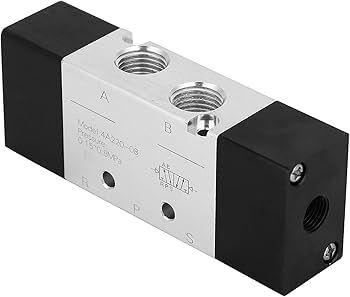

A SERIES 5-2 WAY 2 POSITION DOUBLE PILOT VALVE
