A SERIES 3-2 WAY SINGLE PILOT VALVE 1-8-1-4-3-8-1-2

About A SERIES 3-2 WAY SINGLE PILOT VALVE 1-8-1-4-3-8-1-2

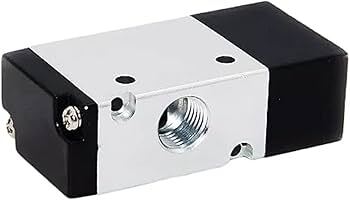

THINK TECH A SERIES 3/2 WAY SINGLE PILOT VALVE

Technical Details

• Product Type: Pneumatic Directional Control Valve

• Series: A Series

• Valve Type: 3/2 Way (3 ports, 2 positions)

• Actuation: Single Pilot (pneumatic pilot operated)

• Positions: Normally Closed (NC) or Normally Open (NO) type

• Port Size: Commonly available in 1/8", 1/4", 3/8",1/2" (BSP/NPT)

• Working Pressure: 0.15 0.8 MPa (1.5 8 bar)

• Proof Pressure: Up to 1.2 MPa (12 bar)

• Working Medium: Filtered and lubricated / non-lubricated compressed air

• Ambient & Fluid Temperature: 5C to 60C

• Body Material: Aluminium alloy

• Seal Material: NBR (Nitrile Rubber)

• Response Time: Fast switching, typically <30 ms

• Mounting: Manifold or individual sub-base

• Lubrication: Not required (but can be used if needed)

• Manual Override: Momentary type (for setup and testing)

Keywords

• A Series Pneumatic Valve

• 3/2 Way Single Pilot Valve

• Pneumatic Directional Control Valve

• Single Pilot Operated Valve

• 3/2 Way Pneumatic Valve

• Industrial Automation Air Valve

• Aluminium Body Pneumatic Valve

• Pilot Operated Pneumatic Valve

• Air Control Valve 3 Port 2 Position

• Normally Closed / Normally Open Pilot Valve
