About SS304 SS316 GATE VALVE

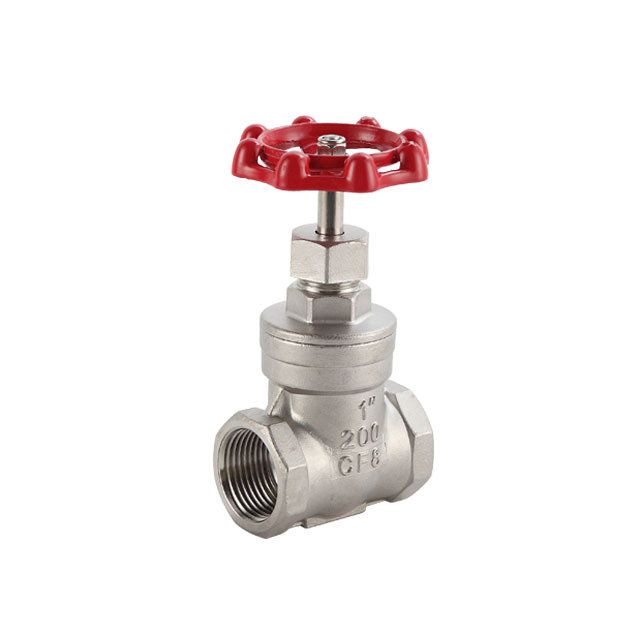

THINK TECH SS304 / SS316 Gate Valve Threaded End Specification

General Description

The Stainless Steel Threaded Gate Valve is a manually operated valve designed for full flow or complete shut-off in pipelines. Constructed from SS304 or SS316, it offers excellent corrosion resistance, durability, and reliability for a wide range of industrial and commercial applications.

Technical Specifications

• Valve Type: Gate Valve (Screw End / Threaded End)

• Size Range: to 4 (DN15 DN100)

• Body Material: Stainless Steel SS304 / SS316

• Bonnet: Stainless Steel SS304 / SS316

• Wedge / Gate: Stainless Steel SS304 / SS316

• Stem: Stainless Steel with rising / non-rising design

• Seat: Integral Metal Seat / Renewable Seat (optional)

• End Connections: BSP / NPT Threaded (as per request)

• Pressure Rating: PN16 / PN25 (up to 25 bar)

• Temperature Range: -20C to +220C (depending on service conditions)

• Operation: Handwheel operated

• Design Standard: API 602 / BS 5154 / ASME B16.34

• Testing Standard: API 598 / EN 12266

Features

• Full bore opening ensures minimum pressure drop

• Rugged stainless steel construction (SS304 / SS316)

• Excellent corrosion and rust resistance

• Available in screw end threaded design for easy installation

• Compact and reliable for shut-off service

• Long service life with smooth operation

• Suitable for low to medium pressure applications

Applications

• Water & Wastewater Treatment

• Oil & Gas Pipelines

• Food & Beverage Processing

• Chemical & Petrochemical Plants

• Pharmaceutical Industry

• Marine & Offshore Industry

• General Industrial Piping
