CASTING WEDGE GATE VALVE BODY CI CS WCB SS304 316 CLASS 150 300 600

About CASTING WEDGE GATE VALVE BODY CI CS WCB SS304 316 CLASS 150 300 600

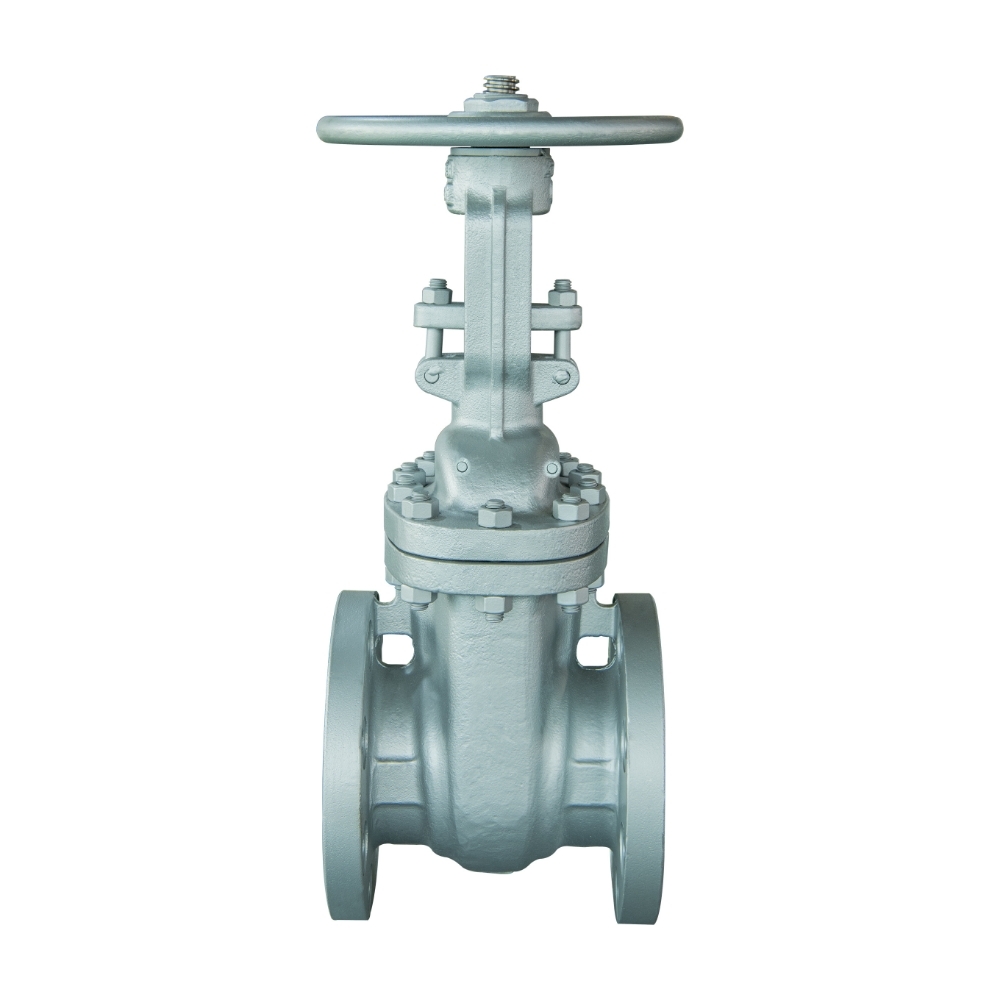

THINK TECH Casting Wedge Gate Valve

• Product: Wedge Gate Valve (Casting Type)

• Body Material Options:

  • CI (Cast Iron)

  • CS (Carbon Steel)

  • WCB (Cast Steel ASTM A216 WCB)

  • SS304 (Stainless Steel 304)

  • SS316 (Stainless Steel 316)

• Design Standard: API 600 / BS 1414 / DIN / IS standards

• Size Range: 2 (DN50) to 48 (DN1200) or as required

• Pressure Rating: Class 150 / Class 300 / Class 600 (PN16 / PN40 / PN100 available)

• End Connection: Flanged ends (ANSI B16.5 / DIN) / Butt-weld / Socket weld

• Bonnet Type: Bolted bonnet / Pressure sealed bonnet

• Disc Type: Solid wedge / Flexible wedge

• Stem Type: Rising stem / Non-rising stem

• Seat Ring: Renewable / Integral (Stellite faced on request)

• Face to Face Dimension: ANSI B16.10

• Testing Standard: API 598 / EN 12266

• Temperature Range: -20C to +425C (depends on material)

• Media: Steam, Water, Oil, Gas, Petrochemicals, Chemicals, Power Plant Service

• Operation: Handwheel / Gear operated / Electric actuator / Pneumatic actuator

Features

• Full bore design for minimum pressure drop

• Suitable for bi-directional flow

• Rugged body with precision casting

• Long service life and leak-proof sealing

• Available in multiple trims and seat options

Keywords

• Casting Wedge Gate Valve

• CI Wedge Gate Valve

• CS Wedge Gate Valve

• WCB Gate Valve Class 150 / 300 / 600

• SS304 Gate Valve Casting

• SS316 Gate Valve Flanged

• Industrial Wedge Gate Valve

• API 600 Gate Valve WCB

• Stainless Steel Gate Valve 150# / 300# / 600#

• Bolted Bonnet Wedge Gate Valve

• Rising Stem Casting Gate Valve

• Oil & Gas Wedge Gate Valve
