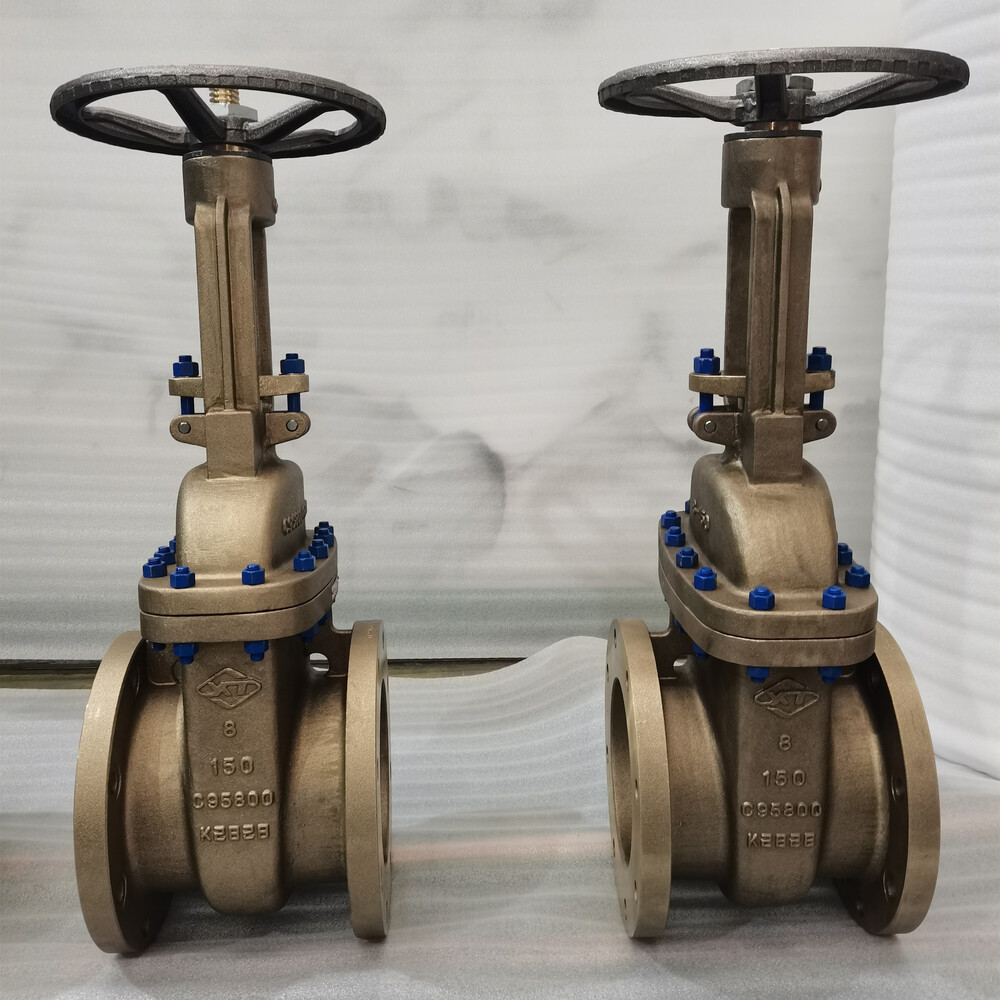

BRONZE GATE VALVE BODY CS CI WCB SS304 SS316 CLASS 150 300 600

About BRONZE GATE VALVE BODY CS CI WCB SS304 SS316 CLASS 150 300 600

THINK TECH Technical Specification Bronze Gate Valve

• Valve Type: Gate Valve

• Body Material Options:

  • Bronze (standard)

  • Cast Steel (CS)

  • Cast Iron (CI)

  • WCB (Cast Carbon Steel Grade WCB)

  • SS304 (Stainless Steel 304)

  • SS316 (Stainless Steel 316)

• Size Range: " to 24" (DN15 to DN600)

• End Connections: Flanged (ANSI B16.5) / Screwed (BSP/NPT) as required

• Class Rating: 150 / 300 / 600

• Bonnet Type: Bolted bonnet

• Wedge Type: Solid wedge / Flexible wedge

• Stem Type: Rising stem (standard) / Non-rising stem (optional)

• Seat Type: Renewable / Integral seat

• Gland Packing: PTFE / Graphite

• Face to Face Dimension: As per ANSI B16.10

• Testing Standard: API 598 / EN 12266

• Working Temperature: -20C to +425C (depending on material)

• Working Pressure: Up to 100 bar (depending on class rating)

• Operation: Handwheel / Gear operated / Actuated (optional)

Features

• Robust construction for long service life

• Excellent corrosion and wear resistance

• Suitable for high-pressure and high-temperature applications

• Leak-tight shutoff with solid wedge design

• Easy maintenance with bolted bonnet construction

Keywords

• Bronze Gate Valve

• Gate Valve Class 150 / 300 / 600

• CS Body Gate Valve

• CI Body Gate Valve

• WCB Gate Valve

• SS304 Gate Valve

• SS316 Gate Valve

• Industrial Bronze Gate Valve

• Flanged Bronze Gate Valve

• Heavy Duty Gate Valve
