About MOV03A 3-2 WAY PUSH GREEN COLOR BUTTON VALVE

THINK TECH MOV03A 3/2 Way Push Button Valve (Green Color Red Color)

Description

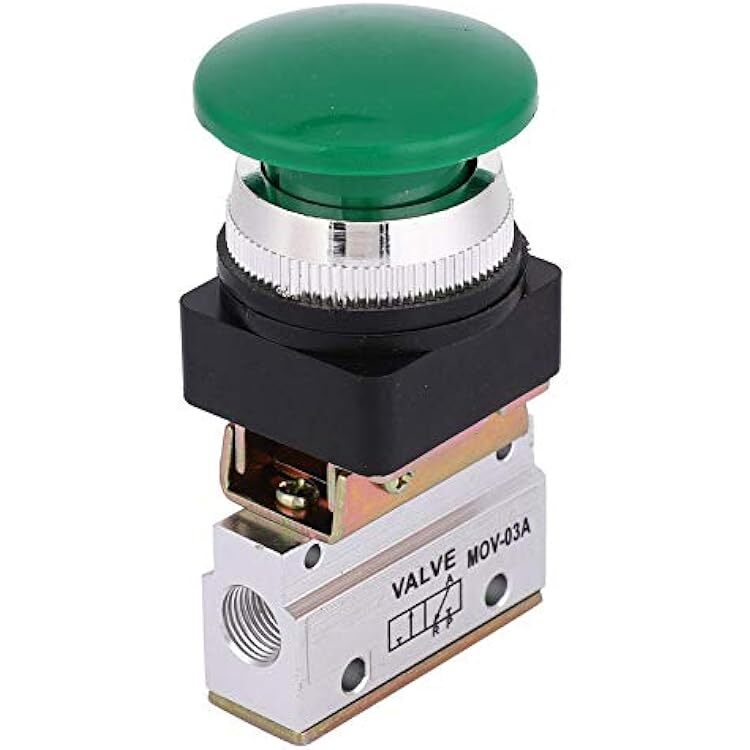

The MOV03A 3/2 Way Push Button Valve is a compact manually operated valve with a green push button actuator. It is designed for controlling the direction of airflow in pneumatic systems and is widely used in industrial automation, control panels, and machine operations.

Technical Specifications

• Model: MOV03A

• Type: 3/2 Way Push Button Valve

• Actuator Type: Green Push Button (Momentary Operation)

• Port Size: 1/8, 1/4 BSP/NPT

• Working Medium: Compressed Air (Filtered, 40m or below)

• Working Pressure: 0 0.8 MPa (0 8 bar)

• Proof Pressure: 1.2 MPa

• Temperature Range: 0C 60C

• Body Material: Aluminum Alloy / Engineering Plastic

• Sealing Material: NBR / Viton

• Mounting Type: Panel / Direct Mounting

• Lubrication: Not required (but possible)

• Life Cycle: More than 5 million operations

Key Features

• Ergonomic green push button for easy operation

• Compact and lightweight design for space-saving installation

• Reliable 3/2 way function for start/stop air supply control

• Quick response and long service life

• Suitable for both panel mounting and direct piping

• No lubrication required, ensuring low maintenance

Applications

• Pneumatic control panels

• Start/Stop control of actuators and cylinders

• Machine tools and automation equipment

• Packaging & textile machinery

• Safety and emergency pneumatic cut-off systems
