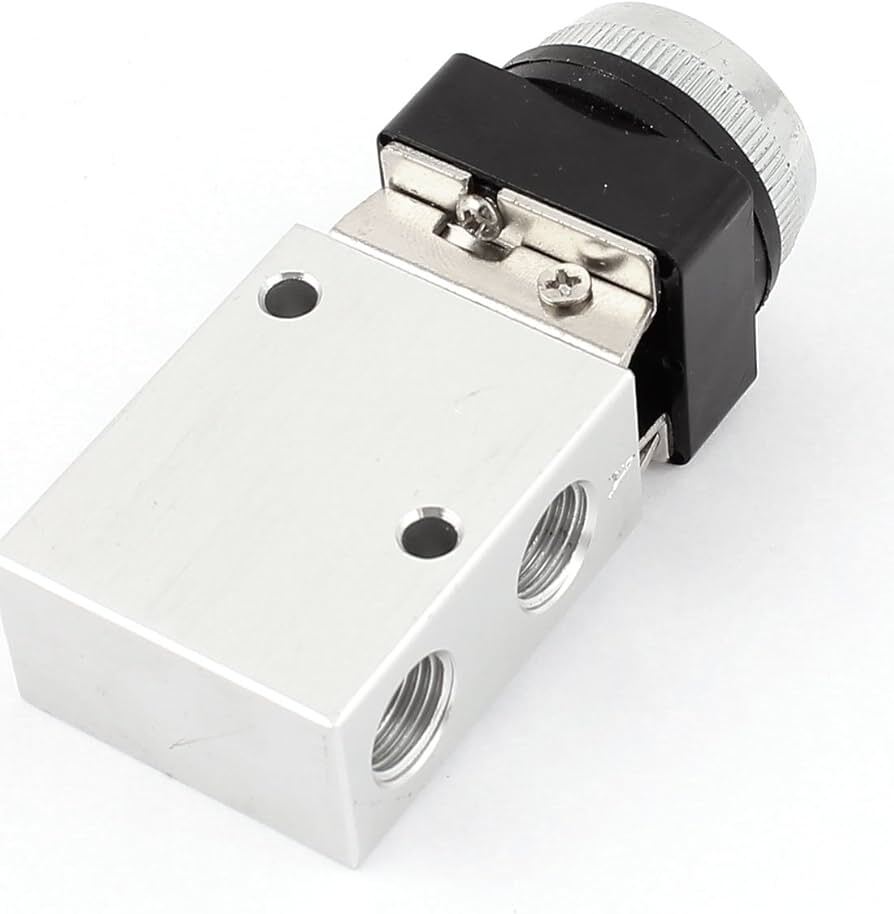

About JM06A 3-2 WAY PLATE ROUND BUTTON VALVE

THINK TECH JM06A 3/2 Way Plate Round Button Valve

• Model No.: JM06A

• Type: 3/2 Way Pneumatic Valve (3 Ports, 2 Positions)

• Operation: Manual Round Push Button with Spring Return

• Mounting Type: Plate Mounted (with fixing holes)

• Port Size: M5 / 1/8" BSP (depends on version)

• Medium Used: Filtered Compressed Air (40 m filtration recommended)

• Working Pressure Range: 00.8 MPa (08 bar)

• Proof Pressure: 1.2 MPa

• Working Temperature: -5C +60C

• Actuation Force: Low operating force, quick response

• Body Material: High-strength Aluminum Alloy (anodized)

• Sealing Material: NBR (Viton optional)

• Exhaust Type: Direct exhaust

• Lubrication: Not required (if used, ISO VG32 oil recommended)

• Function: Normally Closed (NC) air flows when button is pressed

• Durability: > 1 million cycles

• Applications: Pneumatic cylinders, automation panels, machinery control, testing setups, industrial automation.
