About JM06 3-2 WAY KNOB LOCK BUTTON VALVE

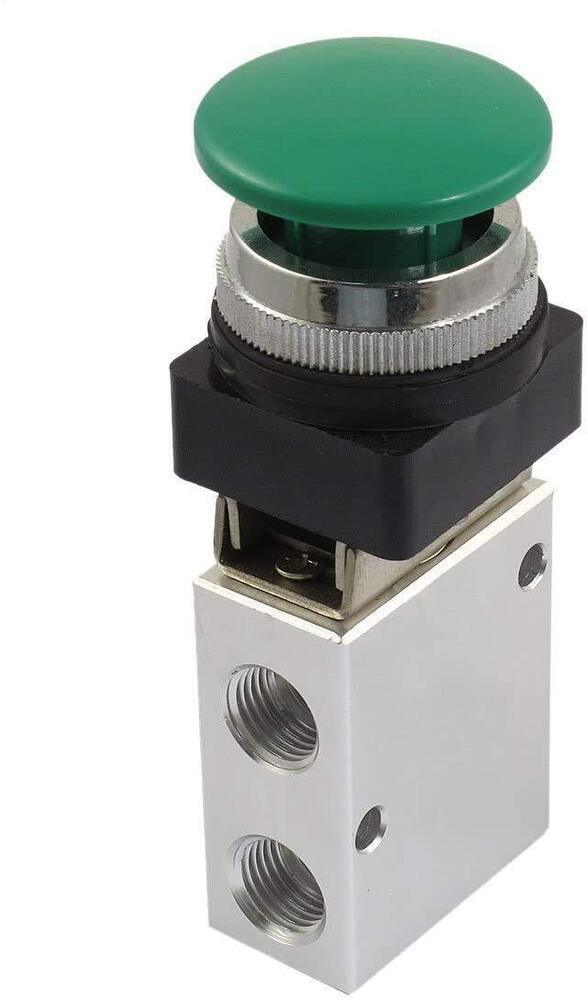

THINK TECH JM06 3/2 Way Knob Lock Button Valve

• Model No.: JM06

• Type: 3/2 Way Pneumatic Valve (3 Ports, 2 Positions)

• Operation: Manual Knob Lock Push Button (with lock mechanism)

• Mounting Type: Panel / Plate Mount (with fixing holes)

• Port Size: M5 / 1/8" BSP (depending on model)

• Medium Used: Filtered Compressed Air (40 m filtration recommended)

• Working Pressure Range: 00.8 MPa (08 bar)

• Proof Pressure: 1.2 MPa

• Working Temperature: -5C +60C

• Actuation: Push to operate, knob lock holds valve position until released

• Body Material: High-strength Aluminum Alloy (anodized finish)

• Sealing Material: NBR (optional Viton for higher temperature resistance)

• Exhaust Type: Direct exhaust

• Lubrication: Not required (if used, ISO VG32 oil recommended)

• Function: Normally Closed (NC) air flows when button/knob is pressed & locked

• Durability: > 1 million cycles

• Applications:

  • Pneumatic cylinders actuation

  • Industrial automation control panels

  • Safety lock pneumatic operations

  • Machinery stop/start air supply

  • Pneumatic test benches and fixtures
