About A SERIES AIR FRC COMBINATION WITH GAUGE AND CLAMP

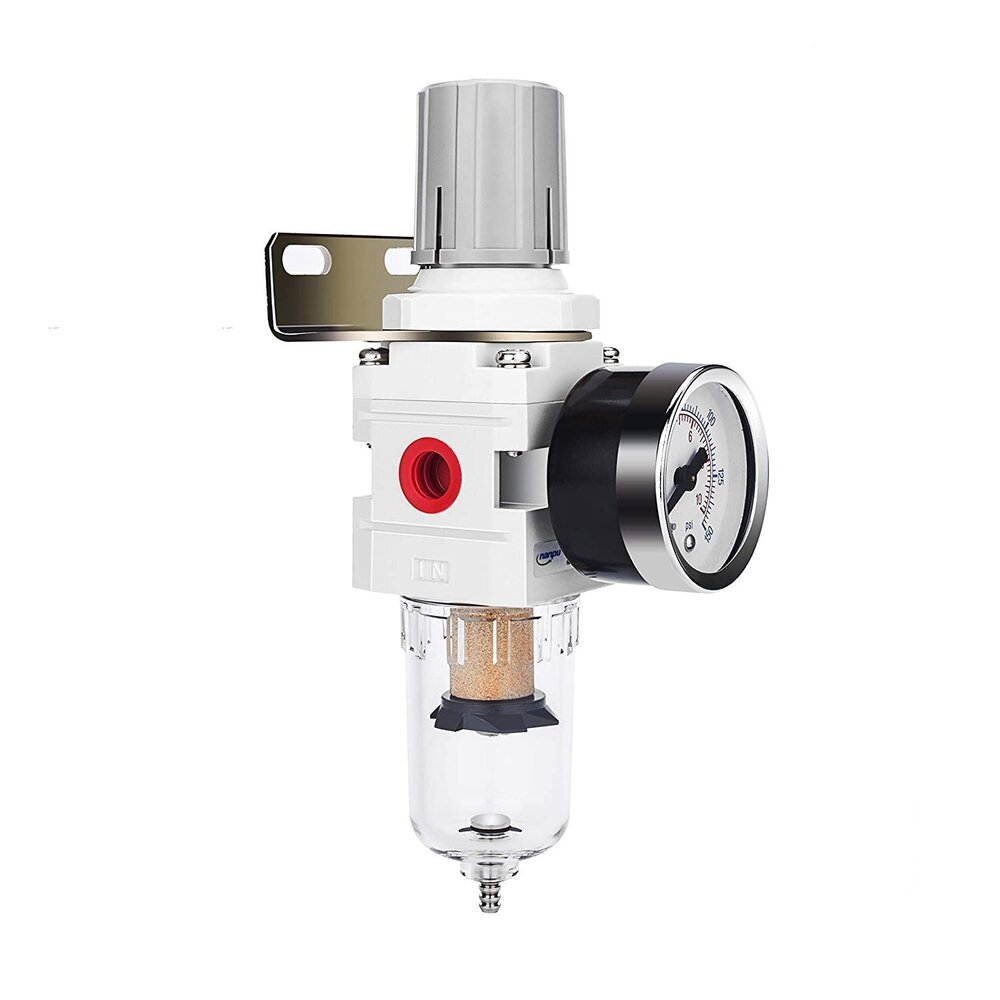

THINK TECH A Series Air FRC Combination with Gauge and Clamp

Technical Data

• Model: A Series

• Type: F.R.C. (Filter + Regulator + Gauge) Combination Unit

• Port Size: 1/4" BSP

• Body Material: Die-cast Aluminum / Engineering Plastic

• Bowl Material: Polycarbonate (transparent) with protective metal guard (optional)

• Filter Element: 40 m (standard)

• Pressure Gauge: Analog type included

• Clamp Bracket: Included for easy panel or wall mounting

• Max Input Pressure: 1.0 MPa (10 bar / 145 psi)

• Regulating Pressure Range: 0.050.85 MPa (0.58.5 bar / 7123 psi)

• Drain Type: Manual or semi-automatic (depending on model)

• Ambient & Fluid Temperature: 5C to 60C

• Weight: Approx. 300450 grams

• Installation Position: Vertical (recommended)
