About AFC 2000 2 PICS F+R+L SET WITH GAUGE 1-4

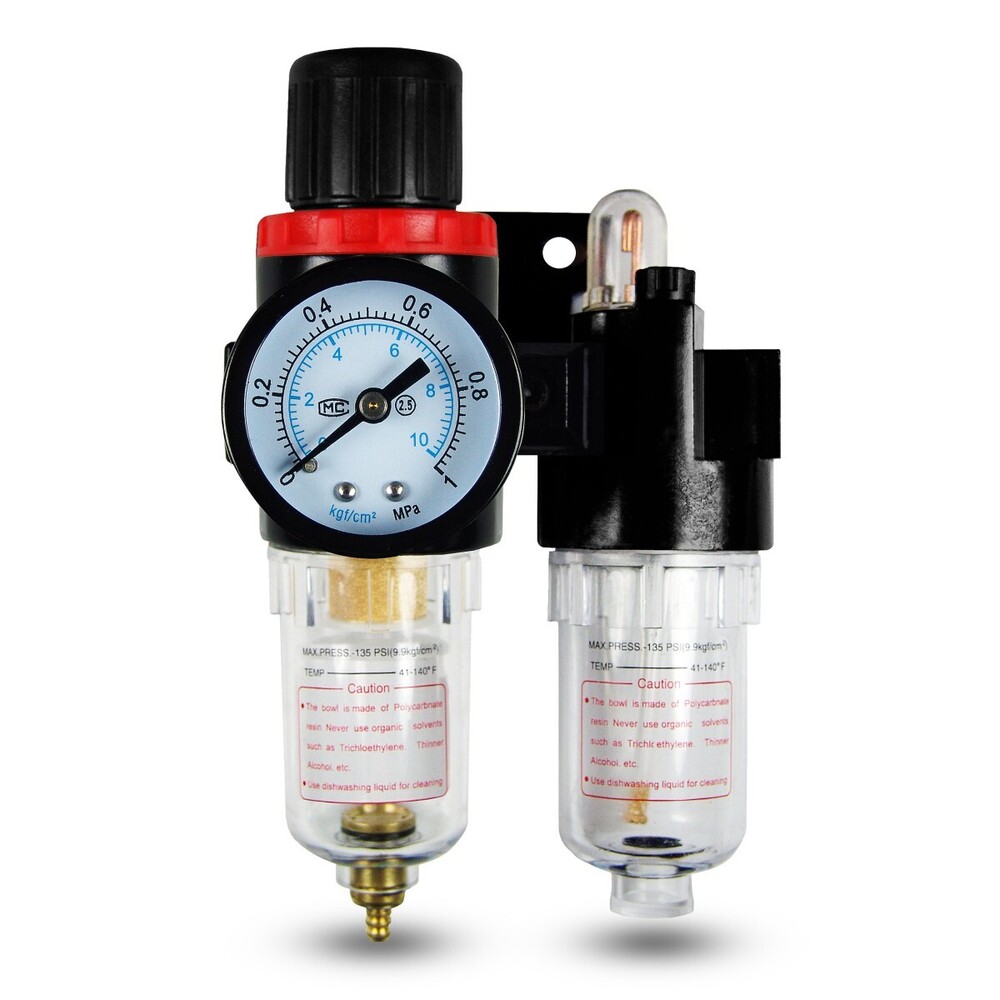

THINK TECH AFC 2000 2 Pcs F+R+L Set with Gauge

Technical Specifications

• Product Type: Air Filter + Regulator + Lubricator (FRL) Combination Unit

• Model: AFC 2000

• Series: AFC Series

• Set Type: 2-Piece (Filter Regulator + Lubricator)

• Port Size: 1/4"

• Body Material: Aluminium alloy body with polycarbonate bowls

• Bowl Guard: Transparent protective cover

• Pressure Gauge: Included (010 bar / 0140 psi)

• Max Working Pressure: 10 bar (1.0 MPa)

• Operating Temperature Range: 5C to 60C

• Filtration Accuracy: 40 micron standard (optional 5 micron)

• Lubricator Capacity: Adjustable oil feed rate, approx. 25 ml bowl

• Drain Type: Manual drain

• Regulation Range: 0.59 bar adjustable

• Mounting: Supplied with bracket/clamp for wall or panel mounting

Keywords

• AFC 2000

• 2 Piece FRL Unit

• Filter Regulator Lubricator Set

• Pneumatic FRL Combination

• Air Regulator with Gauge

• Compressed Air Treatment Unit

• Air Filter Regulator Lubricator

• 1/4" FRL Set

• Pneumatic Air Preparation Unit
