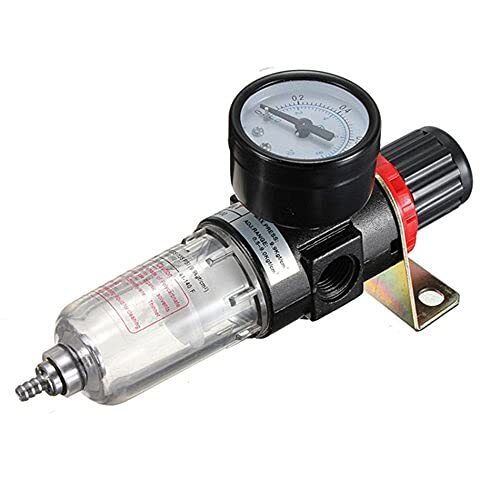

AFR SERIES AIR FRC COMBINATION WITH GAUGE AND CLAMP 1-4

About AFR SERIES AIR FRC COMBINATION WITH GAUGE AND CLAMP 1-4

THINK TECH AFR Series Air FRC Combination with Gauge and Clamp:

Technical Specifications

• Product Type: Air Filter Regulator Combination (FRC) Unit

• Series: AFR Series

• Port Size: 1/4" (other sizes available on request)

• Body Material: Aluminium alloy body with polycarbonate bowl

• Bowl Guard: Metal protective cover for safety

• Pressure Gauge: Included (010 bar / 0140 psi)

• Clamp / Bracket: Included for wall/panel mounting

• Max Working Pressure: 10 bar (1.0 MPa)

• Operating Temperature Range: 5C to 60C

• Filtration Accuracy: 40 micron standard (optional 5 micron)

• Drain Type: Semi-automatic / manual drain

• Regulation Range: 0.59 bar adjustable
