A SERIES 3 PICS F+R+L SET WAITH GAUGE

Product Description

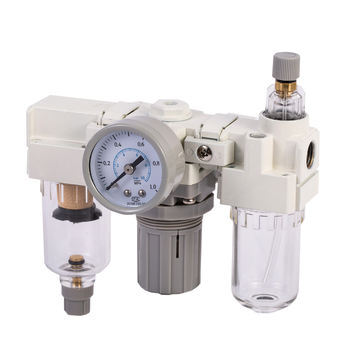

THINK TECH A SERIES 3 PICS F+R+L SET WITH GAUGE

Technical Details

• Product Type: Pneumatic Air Preparation Unit (FRL Combination Set)

• Series: A Series

• Configuration: 3 Pieces Filter + Regulator + Lubricator (F+R+L)

• Port Size: 1/4" (BSP/NPT available)

• Filter Element: 40 m standard (optional 5 m)

• Operating Pressure Range: 0.15 ~ 0.9 MPa (1.5 ~ 9 bar)

• Proof Pressure: 1.5 MPa (15 bar)

• Regulating Pressure Range: 0.05 ~ 0.8 MPa (0.5 ~ 8 bar)

• Max Flow Rate: Suitable for small to medium pneumatic systems

• Working Medium: Filtered compressed air

• Ambient & Fluid Temperature: 5C to 60C

• Body Material: Aluminium alloy with polycarbonate bowl (with metal guard)

• Bowl Capacity:

  • Filter: ~40 mL

  • Lubricator: ~70 mL

• Drain Type: Semi-automatic / Manual drain

• Lubricator Type: Oil mist type, adjustable feed

• Gauge: Pressure gauge included (010 bar)

• Mounting: Bracket / panel mounting
