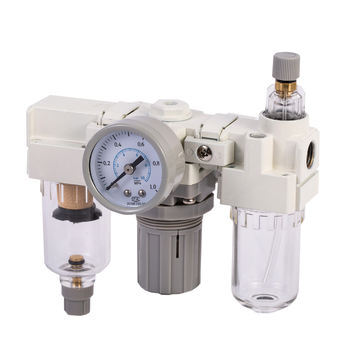

THINK TECH D Series 2 Pcs FR+L Set with Gauge and Clamp

• Model: D Series FR+L Combination Unit

• Type: 2 Pcs Set (Filter + Regulator + Lubricator)

• Design: Modular type with clamp for easy installation and maintenance

• Gauge: Pressure gauge included for monitoring outlet pressure

• Port Size: 1/4", 3/8", 1/2", 3/4", 1" (depending on model)

• Working Medium: Compressed Air (Filtered & Lubricated)

• Working Pressure Range: 0.05 1.0 MPa (0.5 10 bar)

• Max. Operating Pressure: 1.5 MPa (15 bar)

• Proof Pressure: 1.5 MPa

• Operating Temperature: -5C +60C (with no freezing)

• Filter Element: Standard 40 micron / Optional 5 micron

• Bowl Material:

  • Polycarbonate Bowl with Protective Guard (standard)

  • Metal Bowl (optional for high durability)

• Body Material: Aluminum Die-Cast, Powder Coated

• Lubricator Type: Oil Fog Lubricator with adjustable oil feed rate

• Features:

  • High efficiency filtration and stable regulation

  • Transparent bowl for easy monitoring (polycarbonate)

  • Clamp mounting system for secure fitting

  • Compact design suitable for pneumatic automation systems

• Applications: General pneumatic systems, automation machinery, industrial tools, air preparation units
