A SERIES 2 PICS FR+L SET WAITH GAUGE

Product Description

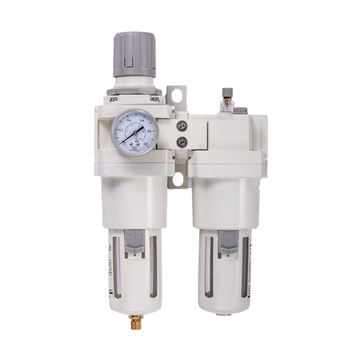

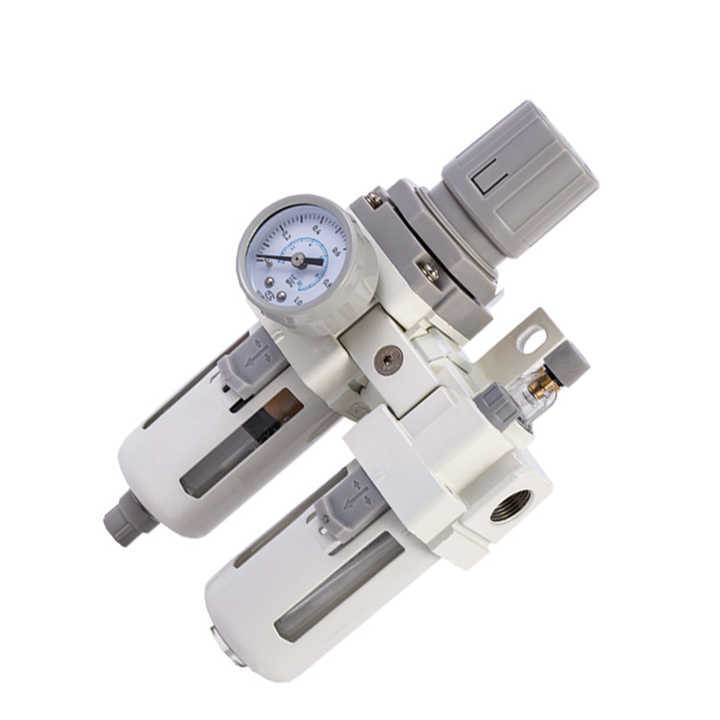

THINK TECH A SERIES 2 PICS F+R+L SET WITH GAUGE

(2-piece Filter + Regulator + Lubricator combined as FR+L, available in 3/8" & 1/2")

Technical Details

• Product Type: Pneumatic Air Preparation Unit (FR+L Combination Set)

• Series: A Series

• Configuration: 2 Pieces Filter + Regulator (combined as one unit) + Lubricator

• Port Size: 3/8" & 1/2" (BSP/NPT available)

• Filter Element: 40 m standard (optional 5 m)

• Operating Pressure Range: 0.15 ~ 0.9 MPa (1.5 ~ 9 bar)

• Proof Pressure: 1.5 MPa (15 bar)

• Regulating Pressure Range: 0.05 ~ 0.8 MPa (0.5 ~ 8 bar)

• Max Flow Rate: Suitable for medium to large pneumatic systems

• Working Medium: Filtered compressed air

• Ambient & Fluid Temperature: 5C to 60C

• Body Material: Aluminium alloy with polycarbonate bowl (with metal guard)

• Bowl Capacity:

  • Filter-Regulator: ~80 mL

  • Lubricator: ~130 mL

• Drain Type: Semi-automatic / Manual drain

• Lubricator Type: Oil mist type, adjustable feed

• Gauge: Pressure gauge included (010 bar)

• Mounting: Bracket / panel mounting
