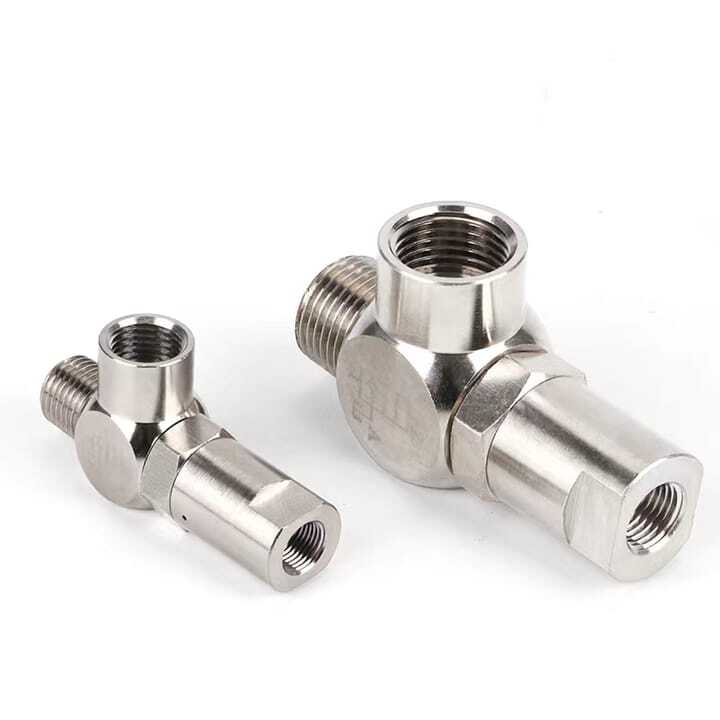

About PCV PILOT CONTROL VALVE

THINK TECH Pilot Control Valve (PCV Model) Specification

General Description

The PCV Model Pilot Control Valve is designed for precise control of compressed air flow in pneumatic circuits. It is compact, durable, and ensures reliable signal transmission for actuators, cylinders, and automation equipment.

Technical Specifications

• Valve Type: Pilot Control Valve (PCV Series)

• Sizes Available: 1/8", 1/4", 3/8", 1/2"

• Body Material: Stainless Steel / Brass / Aluminum Alloy

• Connection Type: BSP / NPT Threaded Ends

• Working Pressure Range: 0.5 10 bar

• Max. Pressure: 12 bar

• Medium: Compressed Air (filtered, lubricated or non-lubricated)

• Temperature Range: -10C to +80C

• Operation: Pneumatic, pilot-operated

• Seal Material: NBR / Viton / EPDM

• Mounting Style: In-line or Panel Mount

• Flow Capacity (Cv): High flow design for efficient control

• Service Life: > 10 million cycles

• Standards: ISO / CE Certified

Features

• Compact, space-saving design

• High durability and long cycle life

• Low pressure drop with high flow

• Easy installation and maintenance

• Available in multiple sizes

• Suitable for automation and control applications

Applications

• Pneumatic Automation Systems

• Pilot Control for Actuators and Cylinders

• Air Logic Control Circuits

• Packaging Machinery

• Textile Machinery

• Automotive Assembly Lines

• Process Industries
