About 2-2 WAY PNEUMATIC ACTUATED PISTON ANGLE SEAT Y TYPE CONTROL VALVE SCREWED AND FLANGED

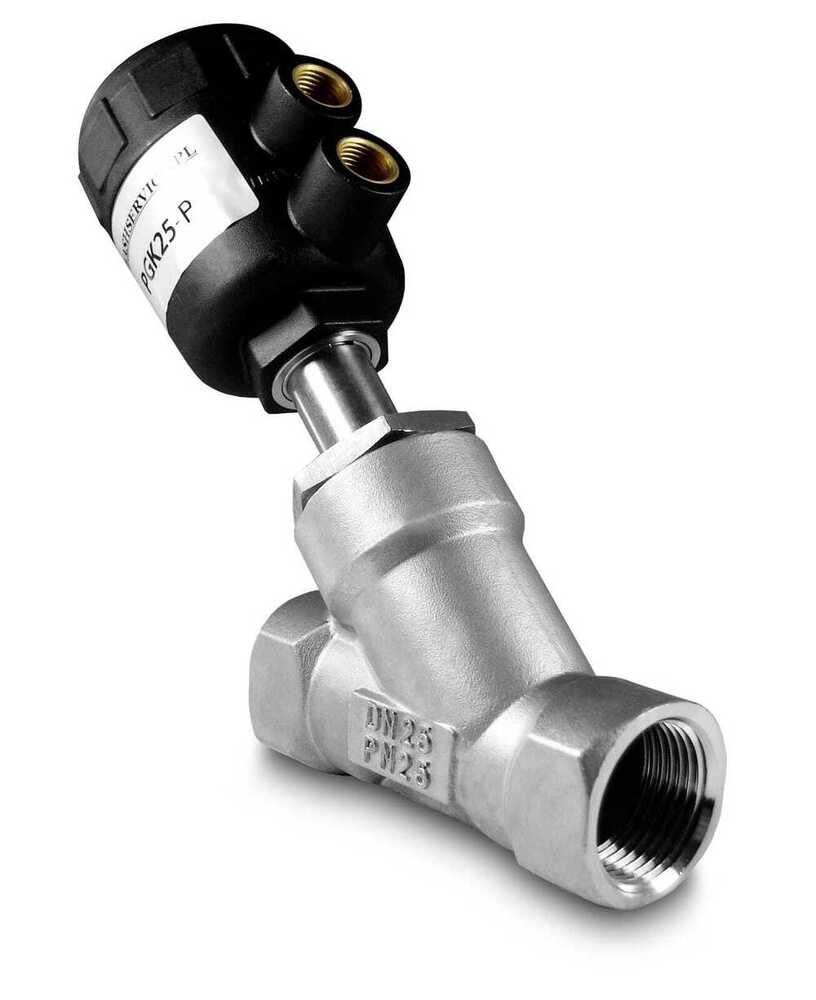

THINK TECH 2/2 Way Pneumatic Actuated Piston Angle Seat Y-Type Control Valve (Screwed & Flanged End)

Technical Data 2/2 Way Pneumatic Actuated Angle Seat Y-Type Control Valve

• Model: Pneumatic Actuated Piston Angle Seat Valve Y Type

• Type: 2/2 Way Normally Closed (NC) / Normally Open (NO)

• Operation: Pneumatic piston actuator with spring return / double acting

• Port Connection:

  • Screwed End: BSP / NPT (1/2" to 2")

  • Flanged End: ANSI / DIN / JIS (DN15 DN100)

• Body Material: Stainless Steel SS304 / SS316

• Actuator Material: Aluminum alloy with hard anodized coating / Polyamide

• Seal Material: PTFE / Graphite reinforced PTFE

• Working Medium: Air, Water, Steam, Neutral gases, Oil, Non-corrosive fluids

• Working Pressure: 0 16 bar (screwed), up to 25 bar (flanged)

• Operating Pressure (Pilot Air): 4 8 bar

• Temperature Range: -10C to +180C (with PTFE seal)

• Flow Characteristics: High Kv (Y-type angle seat ensures low flow resistance)

• Design Feature: Self-cleaning seat, high cycle life, maintenance free

• End Connection Options: Screwed (BSP/NPT) / Flanged (ANSI, DIN, JIS)

• Applications: Steam lines, Hot water, Oil, Compressed air, Chemical industry, Process automation
