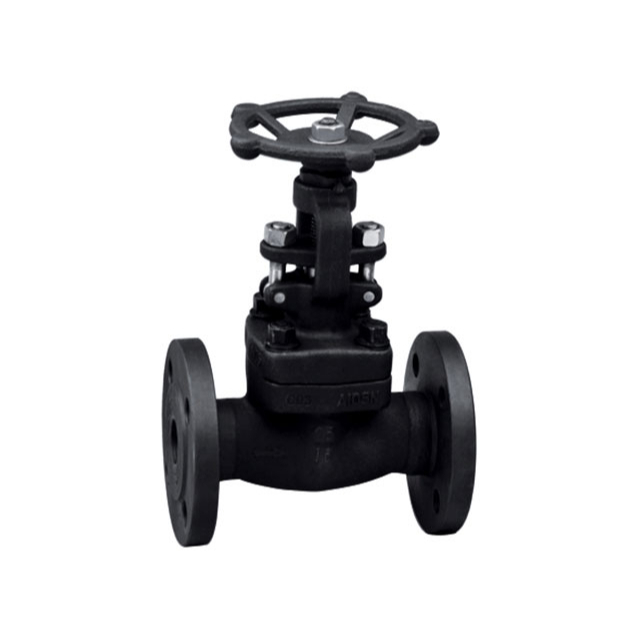

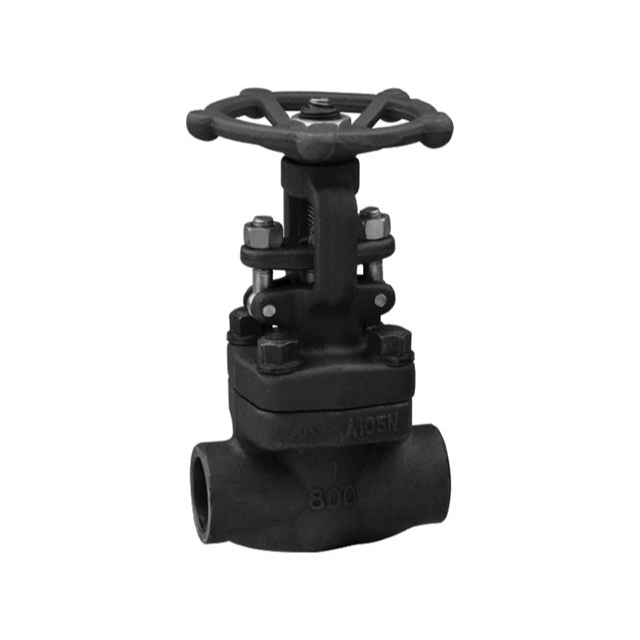

About FORGED STEEL GLOBE VALVE

THINK TECH Forged Steel Globe Valve Specification

General Description

The Forged Steel Globe Valve is designed for throttling and shut-off service in pipelines handling steam, oil, gas, and other process fluids. Manufactured from high-quality forged steel, it ensures strength, durability, and reliable performance under high pressure and temperature conditions.

Technical Specifications

• Valve Type: Globe Valve (Forged Steel)

• Size Range: to 2 (DN15 DN50)

• Body & Bonnet Material: Forged Carbon Steel (A105), Alloy Steel (F11 / F22), Stainless Steel (SS304 / SS316)

• Trim (Disc & Seat): Stainless Steel / Hard-faced (Stellite on request)

• End Connections:

  • Screwed (BSP / NPT)

  • Socket Weld (SW)

  • Butt Weld (BW)

• Pressure Rating: Class 150 / 300 / 600 / 800 / 1500 (as per ANSI / ASME)

• Temperature Range: -29C to +425C (Carbon Steel) / Up to +600C (Alloy Steel)

• Design Standard: API 602 / BS 5352 / ASME B16.34

• Testing Standard: API 598 / EN 12266

• Operation: Handwheel operated (manual)

Features

• Heavy-duty forged steel construction for high strength

• Rising stem design for accurate throttling control

• Backseat arrangement to replace packing under pressure

• Available with screwed, socket weld, or butt weld ends

• Compact design for high-pressure service

• Long service life with reliable shut-off capability

Applications

• Steam service lines

• Oil & Gas pipelines

• Refinery & Petrochemical plants

• Power generation plants

• Chemical & Process industries

• High-pressure fluid service
