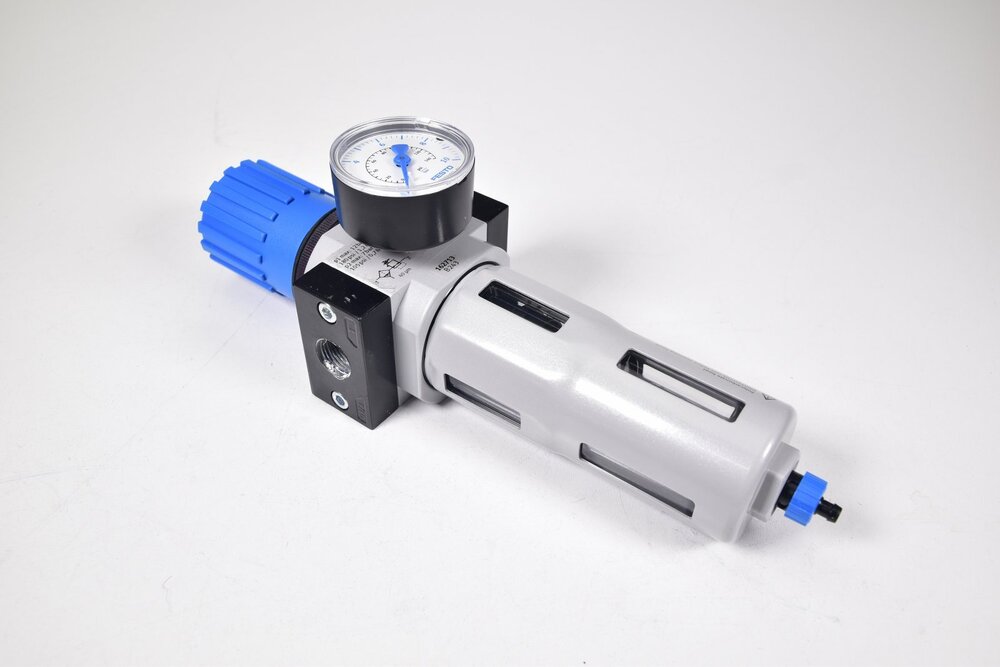

D SERIES FRC COMBINATION SET WITH GAUGE AND CLAMP 1-4-1-2

About D SERIES FRC COMBINATION SET WITH GAUGE AND CLAMP 1-4-1-2

THINK TECH D Series FRC Combination Set with Gauge & Clamp

• Model: D Series FRC (Filter + Regulator + Lubricator)

• Type: FRL Unit with Gauge & Clamp

• Port Size: 1/4, 3/8, 1/2 BSP/NPT

• Filter Element: 25 micron / 40 micron (optional)

• Bowl Capacity:

  • Filter Bowl: Transparent Polycarbonate with Metal Guard / Aluminum Bowl (optional)

  • Lubricator Bowl: Transparent Polycarbonate with Sight Dome

• Pressure Range: 0.5 10 bar adjustable (7 145 psi)

• Max. Input Pressure: 15 bar (220 psi)

• Body Material: Aluminum Die-cast with Powder Coating

• Bowl Material: Polycarbonate (PC) with Metal Protection / Aluminum

• Seals: Nitrile Rubber (NBR)

• Drain Type: Semi-Automatic / Manual Drain (as required)

• Lubrication: Adjustable oil feed (sight glass type)

• Gauge: Pressure Gauge Included (010 bar / 0150 psi)

• Clamp: Mounting Clamp for Panel / Equipment fixing

• Temperature Range: 0C to 60C

• Features:

  • 3-in-1 unit (Filter + Regulator + Lubricator)

  • Ensures clean, regulated, and lubricated air supply

  • Compact design with integrated gauge

  • High durability and easy maintenance

  • Transparent bowl for easy monitoring

  • Stable pressure control with efficient lubrication
