About A SERIES 2 PICS FR+L SET WAITH GAUGE 3-4-1

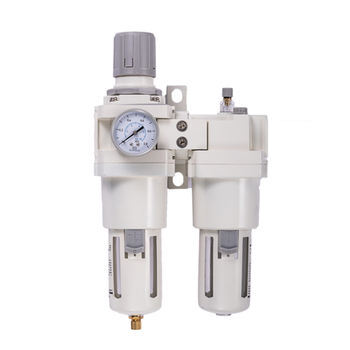

THINK TECH A Series 2 Pcs FR+L Set with Gauge

Technical Data A Series 2 Pcs FR+L Set with Gauge (3/4" & 1")

• Model: A Series FR+L (Filter + Regulator + Lubricator) 2 Pcs Combination

• Port Size: 3/4", 1" BSP/NPT

• Medium: Compressed Air

• Max. Operating Pressure: 10 kgf/cm (1.0 MPa)

• Proof Pressure: 15 kgf/cm (1.5 MPa)

• Regulating Pressure Range: 0.5 8.5 kgf/cm

• Filtration: Standard 40 m (Optional 5 m)

• Drain Type: Semi-auto / Auto Drain

• Bowl Material: Polycarbonate with Metal Guard / Aluminum Bowl (for heavy duty)

• Lubricator: Oil Mist Type

• Gauge: Pressure Gauge included

• Flow Capacity: High flow suitable for large pneumatic systems

• Mounting: Wall mounting with clamp / bracket

• Temperature Range: 5C 60C
