Product Description

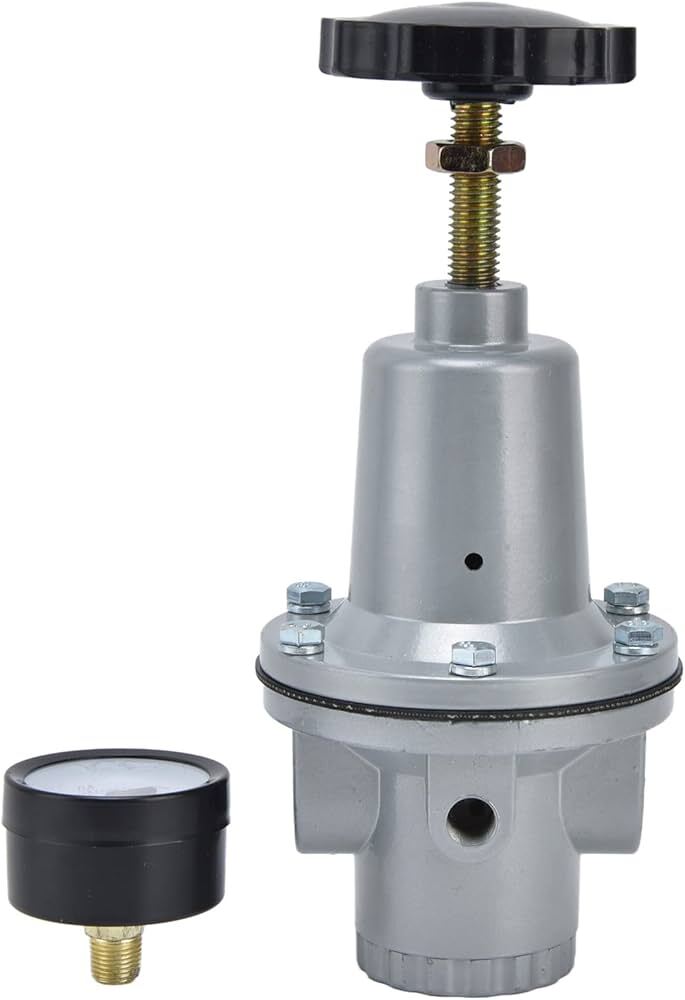

THINK TECH QTY Air Regulator with Gauge Specification

General Description

The QTY Series Air Regulator with Gauge is a precision pressure control unit designed for pneumatic systems. It ensures stable and accurate outlet pressure, regardless of inlet pressure fluctuations or air consumption changes. The regulator comes with an easy-to-read pressure gauge for real-time monitoring and adjustment.

Technical Specifications

• Model: QTY Series

• Type: Standard Pneumatic Air Pressure Regulator with Gauge

• Body Material: Aluminum Alloy / Zinc Die-Cast

• Port Sizes: 1/8, 1/4, 3/8, 1/2 BSP / NPT

• Max Inlet Pressure: 1.5 MPa (15 bar / 215 psi)

• Regulating Pressure Range: 0.05 0.85 MPa (0.5 8.5 bar adjustable)

• Working Medium: Filtered Compressed Air (40m filtration recommended)

• Temperature Range: -5C to +60C

• Construction: Diaphragm operated, relieving type

• Gauge: Standard analog pressure gauge included

• Mounting: Inline or panel mount

• Optional:

  • Stainless steel gauge

  • Pressure lock knob

  • Bracket for easy panel installation

Features

• Provides accurate and stable outlet pressure

• Built-in pressure gauge for easy monitoring

• Relieving type design automatically vents excess downstream pressure

• Compact and lightweight regulator for easy installation

• Durable construction ensures long service life

• Available in multiple port sizes for compatibility with pneumatic systems

• Custom pressure ranges and options available

Applications

• Pneumatic Tools & Equipment

• Industrial Automation Systems

• Packaging Machinery

• Printing and Textile Industry

• Food Processing Equipment

• Robotics and Material Handling

• General Air Line Pressure Regulation
