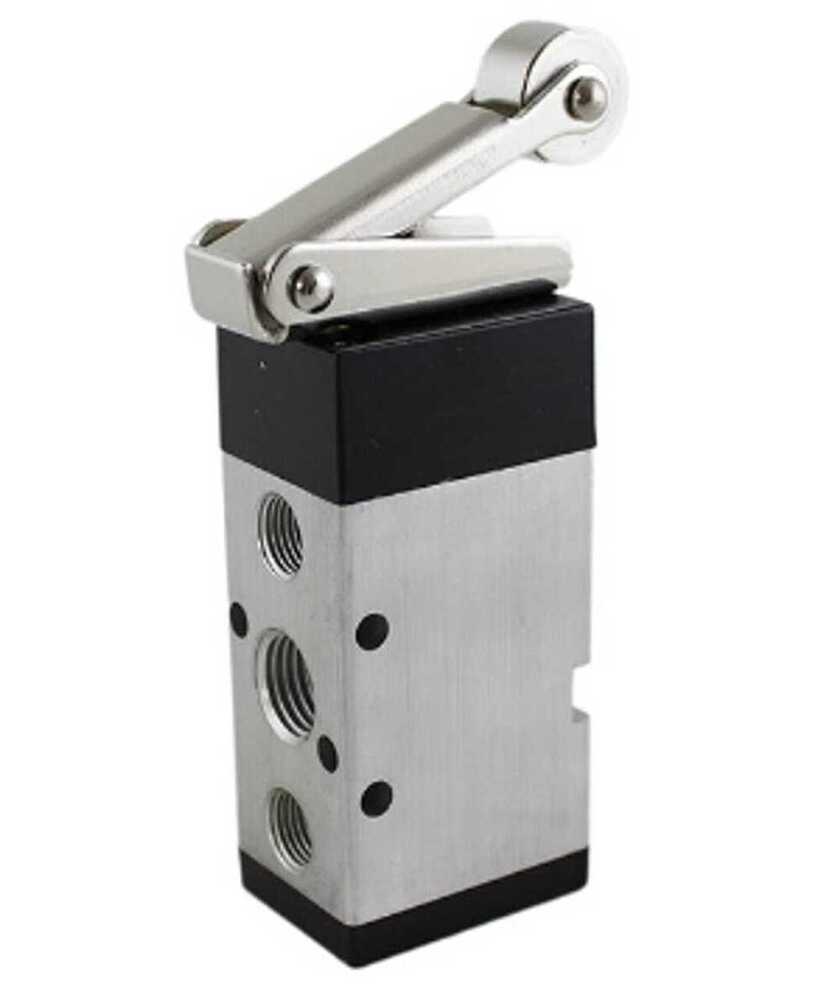

THINK TECH MSV 3/2 Way & 5/2 Way Roller Valve Specification

Description

The MSV series Roller Valve is a manually/mechanically operated pneumatic valve used to control air flow in automation systems. Available in 3/2 way and 5/2 way configurations, these valves are compact, reliable, and suitable for repetitive mechanical actuation with roller lever operation.

Technical Specifications

• Model: MSV Series

• Type: 3/2 Way Roller Valve / 5/2 Way Roller Valve

• Port Size: 1/8, 1/4 (BSP/NPT optional)

• Working Medium: Compressed Air (Filtered, Lubricated/Non-Lubricated)

• Pressure Range: 0.15 0.8 MPa (1.5 8 bar)

• Operating Temperature: 0C to +60C

• Actuation Type: Mechanical Roller Lever

• Mounting: Direct or Panel Mounting

• Material:

  • Body: Aluminum Alloy / Die-Cast

  • Seals: NBR / Viton

  • Spool: Hardened Stainless Steel

• Life Cycle: Over 10 million cycles

• Flow Rate (Cv): High flow capacity with low pressure drop

• Operation: Momentary actuation with automatic return

Key Features

• Simple and compact design for reliable operation

• Available in 3/2 way (single-acting) and 5/2 way (double-acting actuator control)

• High mechanical strength with precision roller actuation

• Easy installation and long service life

• Suitable for repetitive automation processes

Applications

• Pneumatic automation systems

• Packaging & material handling machines

• Textile machinery

• Automotive assembly lines

• Pneumatic actuators control

• Industrial control panels
