About MOV02 3-2 WAY ROLLER VALVE

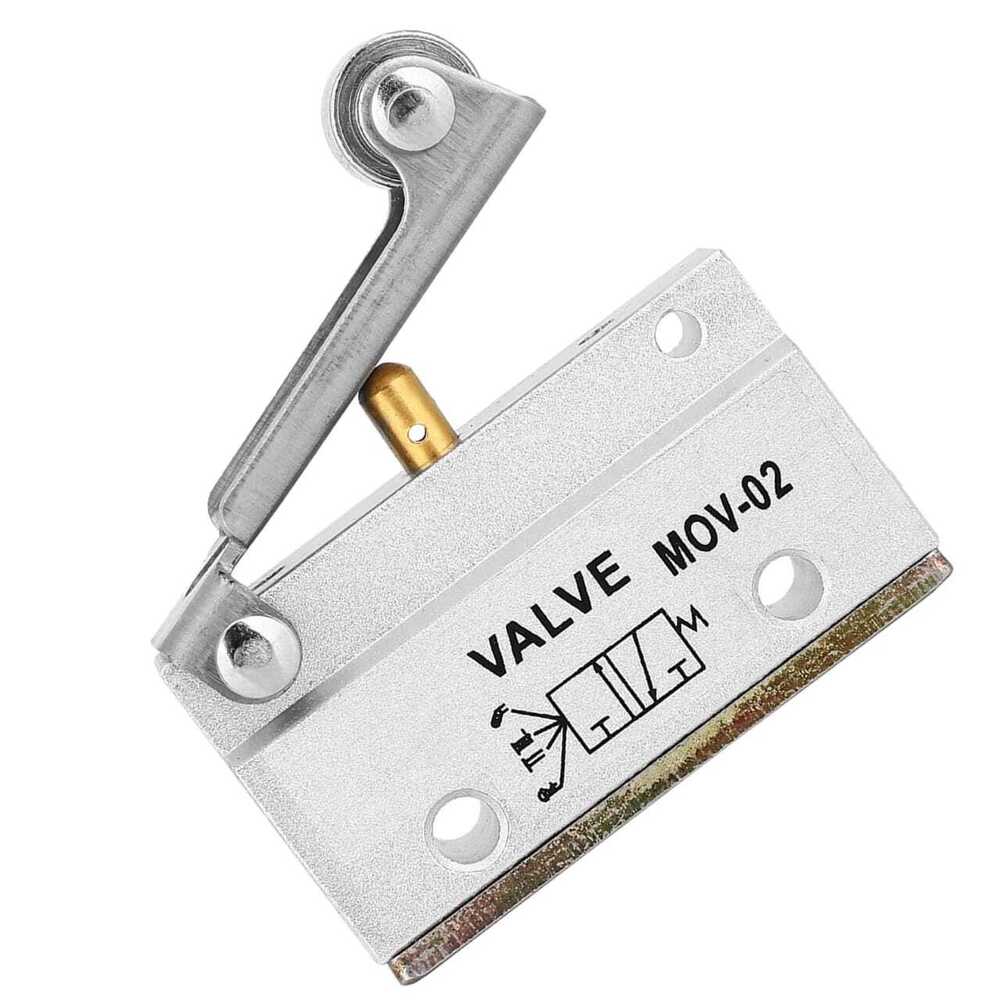

THINK TECH MOV02 3/2 Way Roller Valve

Description

The MOV02 3/2 Way Roller Valve is a mechanically operated directional control valve, designed to be actuated by a roller lever. It is widely used in automation systems for mechanical position sensing, actuation, and control of air flow. Its compact and robust construction ensures long service life in demanding applications.

Technical Specifications

• Model: MOV02

• Type: 3/2 Way Roller Valve (Normally Closed / Normally Open options)

• Actuator Type: Mechanical Roller Lever

• Port Size: 1/8, 1/4 BSP/NPT

• Working Medium: Filtered Compressed Air (40 m or below)

• Operating Pressure: 0 0.8 MPa (0 8 bar)

• Proof Pressure: 1.2 MPa

• Temperature Range: 0C 60C

• Body Material: Aluminum Alloy / Zinc Alloy

• Sealing Material: NBR / Viton

• Mounting Type: Direct / Panel Mount

• Lubrication: Not required (optional)

• Life Cycle: More than 5 million cycles

Key Features

• Roller lever actuator ensures smooth mechanical operation

• Suitable for position detection and limit control

• Compact and durable body for industrial use

• Long operational life with minimal maintenance

• Easy installation in automated systems

Applications

• Pneumatic automation machinery

• Position and limit sensing

• Packaging and textile machinery

• Mechanical control circuits

• Actuator and cylinder start/stop functions
