About MOV01 3-2 WAY SELECTOR KNOB VALVE

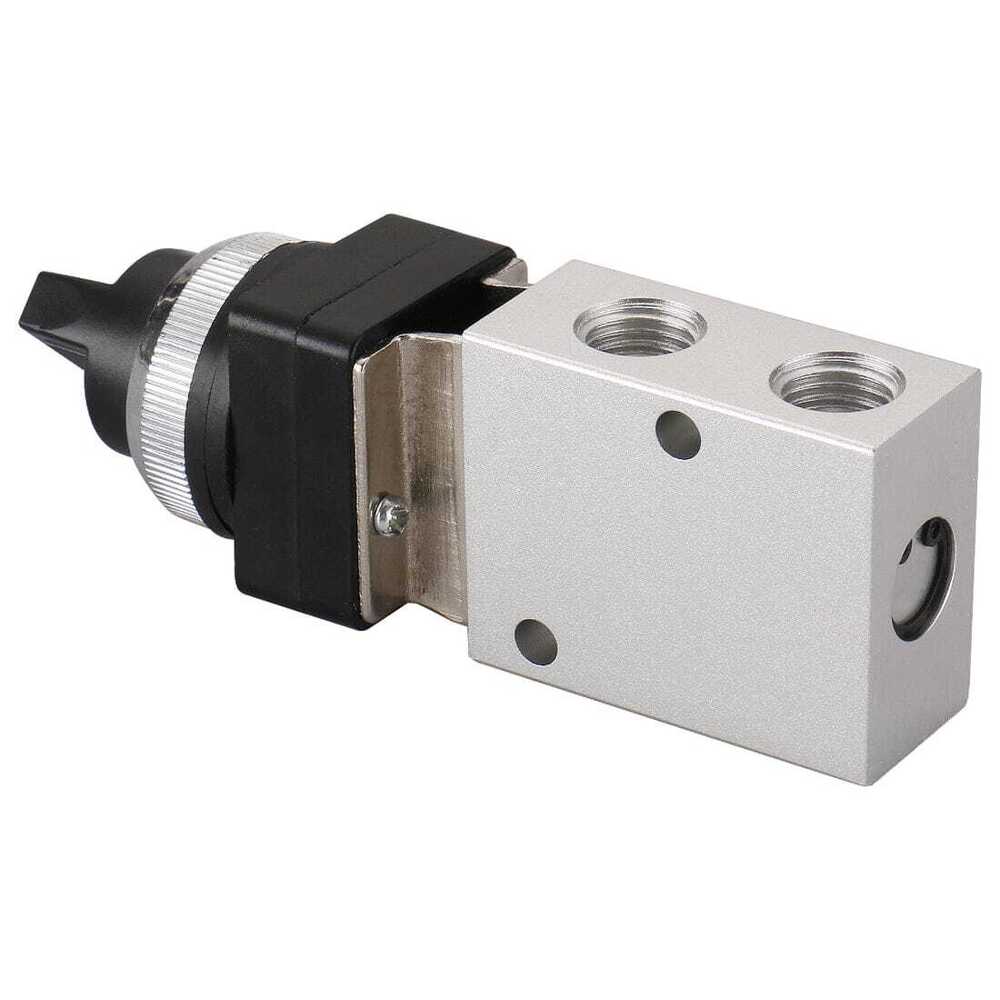

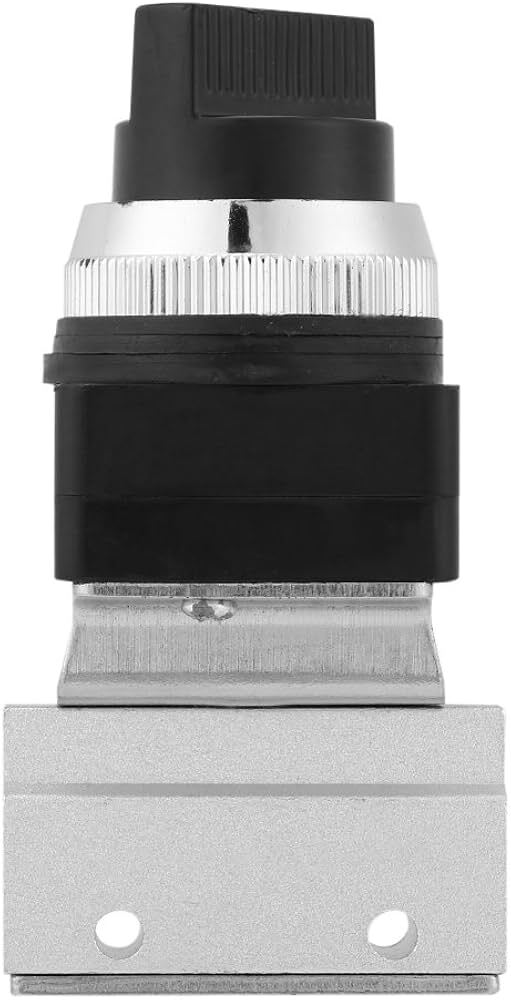

THINK TECH MOV01 3/2 Way Selector Knob Valve

Description

The MOV01 3/2 Way Selector Knob Valve is a manually operated directional control valve designed with a rotary selector knob for reliable and precise switching of air flow. It is ideal for use in pneumatic systems requiring manual control, testing, or emergency operations. Compact and durable, it ensures long-lasting performance in industrial environments.

Technical Specifications

• Model: MOV01

• Type: 3/2 Way Selector Knob Valve (Normally Closed / Normally Open options)

• Operation: Manual Knob (Rotary Selector)

• Port Size: 1/8, 1/4 BSP/NPT

• Working Medium: Filtered Compressed Air (40 m or below)

• Operating Pressure: 0 0.8 MPa (0 8 bar)

• Proof Pressure: 1.2 MPa

• Temperature Range: 0C 60C

• Body Material: Aluminum Alloy / Zinc Alloy

• Sealing Material: NBR / Viton

• Mounting Type: Panel / Direct Mount

• Lubrication: Not required (optional)

• Life Cycle: Over 5 million cycles

Key Features

• Easy-to-use manual selector knob for switching

• Compact design, suitable for control panels and machinery

• Reliable for testing, selection, and emergency shut-off

• Strong body construction for industrial use

• Long service life with minimal maintenance

Applications

• Pneumatic machinery manual control

• Testing and trial operations

• Emergency air supply cut-off

• Control panels in automation systems

• Cylinder start/stop or directional control
