About HANDLE OPERAT BUTTERFLY VALVE CI SG IRON WCB SS304 SS316

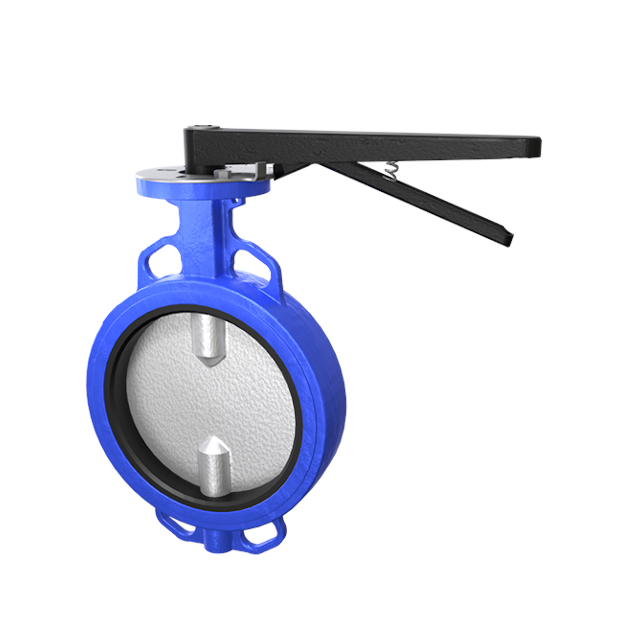

THINK TECH Handle Operated Butterfly Valve

• Product Name: Handle Operated Butterfly Valve

• Body Material Options:

  • Cast Iron (CI)

  • SG Iron (Ductile Iron)

  • WCB (Carbon Steel)

  • Stainless Steel 304 (SS304)

  • Stainless Steel 316 (SS316)

• Disc Material: CI / SG Iron / WCB / SS304 / SS316 (as per requirement)

• Seat Material: EPDM / NBR / PTFE / Viton (customized sealing option)

• Operation: Manual lever handle operated (notched locking positions)

• Size Range: 40mm to 600mm (larger sizes available on request)

• Pressure Rating: PN10 / PN16 / ANSI 150 Class

• End Connection: Wafer type / Lug type (suitable for flange mounting)

• Working Medium: Air, Water, Oil, Gas, Steam, Chemical & General fluids

• Temperature Range: -20C to +180C (depending on seat material)

• Design Standards:

  • Face to Face: ISO 5752 / API 609

  • Flange Drilling: ANSI / DIN / BS / IS standards

• Features:

  • Lightweight, compact, and cost-effective design

  • 90 quick quarter-turn operation

  • Bubble-tight shut-off with resilient seat

  • Lockable lever for position holding

  • Corrosion-resistant and durable body options

• Applications:

  • Water treatment plants

  • HVAC systems

  • Chemical processing

  • Food & Beverage industry

  • Oil & Gas pipelines

  • General industrial fluid control
