Product Description

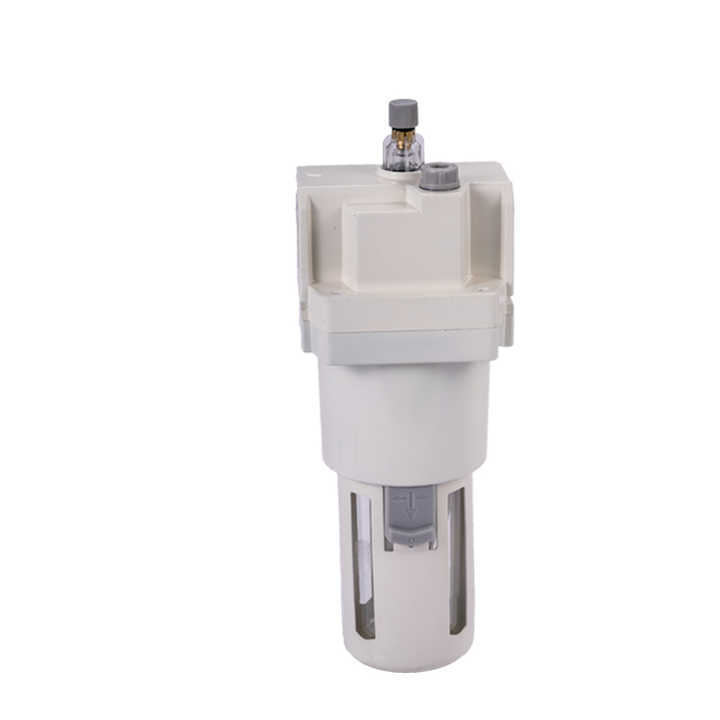

THINK TECH A Series Air Lubricator

Technical Data

• Model: A Series

• Type: Pneumatic Air Line Lubricator

• Port Size: 3/4" & 1" BSP (optional)

• Bowl Capacity: Approx. 200250 ml (depending on size)

• Body Material: Die-cast Aluminum / Engineering Plastic

• Bowl Material: Polycarbonate (with protective metal guard)

• Max Input Pressure: 1.0 MPa (10 bar / 145 psi)

• Operating Pressure Range: 0.150.85 MPa (1.58.5 bar / 22123 psi)

• Oil Feed Adjustment: Adjustable oil drip rate (sight dome type)

• Recommended Oil: ISO VG32 or equivalent pneumatic oil

• Ambient & Fluid Temperature: 5C to 60C

• Weight: Approx. 500700 grams (depending on port size)

• Installation Position: Vertical (recommended)
